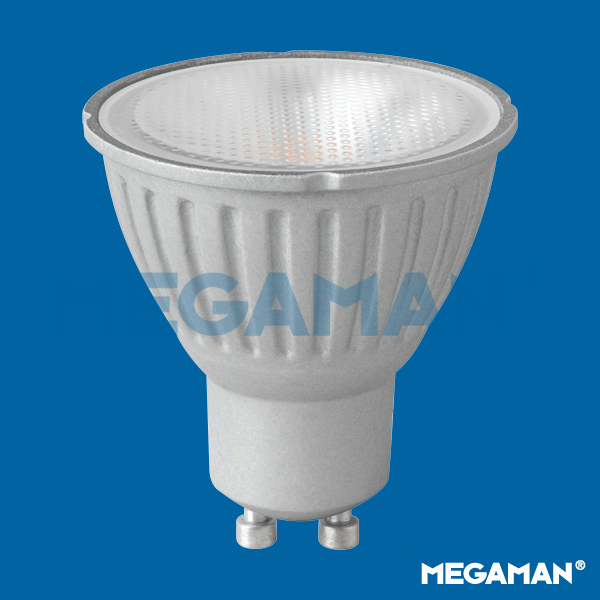

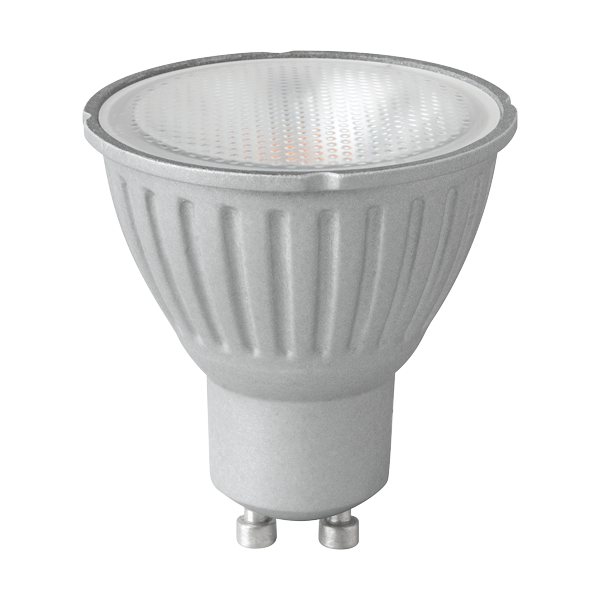

Dim-to-Warm-PAR16 6W WFL GU10 1800K-2800K

Smart Series

A
U-DIM
Dim-to-Warm





MEGAMAN LED

Conventional Lamp
Photometric Diagram
Lux-cone Diagram
Spectral Power Distribution
Spectral Power Distribution
     Specification Sheet
Product Code:

LR5006wDG-WFL-GU10-2800K-230V

Electrical Data
Voltage (V) 220-240V
Frequency (Hz) 50/60
Power Factor (λ) >0.5
Starting Time (sec) <0.5
Warm-up Time Up to 100% of the Full Light Output (sec) Instant full light
Product Data
Lamp Base GU10
Product Wattage (W) 6
Reflector PAR16
Beam Angle (°) WFL (35)
Colour Temperature (K) Dim to Warm (2800K-1800K)
Colour Render Index (Ra) Ra82
Colour Consistency (SDCM) >6
Dimmable 100-5%
Energy Label A
Operating Temperature -30°C to +40°C
Switching Cycles (times) >1000000
Mercury Content (mg) N/A
Weight (g) 75
Application Hospitality, Residential
Performance Data
Max. Luminous Intensity (cd) 480
Total Luminous Flux (lm) 380
Luminous Flux in 90° cone (lm) 280
Rated Life (hrs) 25000
Lumen Maintenance at the End of Lamp Life (%) ≥90
Product Dimensions
Diameter (mm) 50
Length (mm) 57
Remarks

Colour Temperature changes from 2800K to 1800K when dimmed from 100% to 10%. The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging. There is no measurable output from 180nm to 380nm, so the chart shows only 380nm to 800nm.

Technologies

  • U-DIM
    Compatible with the widest range of existing dimmers, whether they are leading-edge or trailing edge dimmers, with enhanced dimming range of 100% to 5%.
  • Dim-to-Warm
    Following exactly the dimming curve of familiar incandescent and halogen lamps, the LED lamps could simultaneously emit a warmer light when they are dimmed from 100% to 10%.
