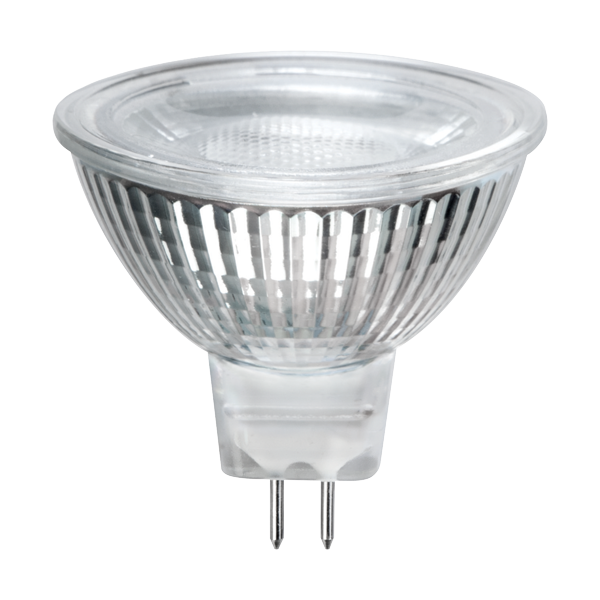

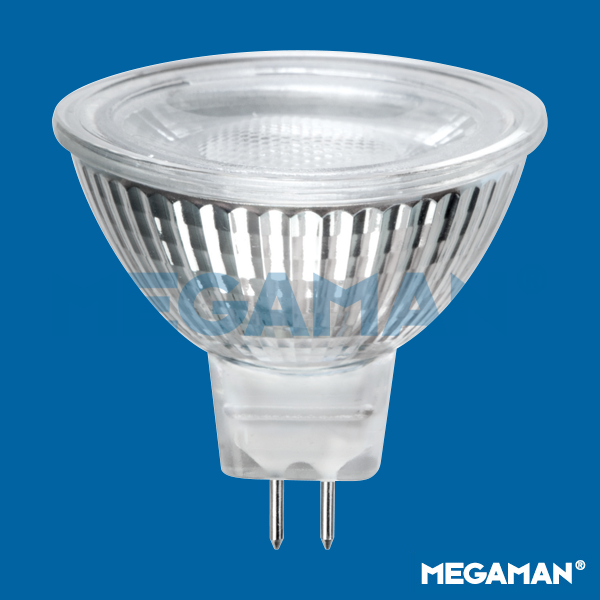

MR16 4.7W WFL GU5.3 4000K

Economy Series

A+





MEGAMAN LED

Conventional Lamp
Photometric Diagram
Lux-cone Diagram
Spectral Power Distribution
Spectral Power Distribution
     Specification Sheet
Product Code:

ER4504.7LN-WFL-GU5.3-4000K-12V

Electrical Data
Voltage (V) AC 12V
Constant Current (mA) 600
Power Factor (λ) >0.6
Starting Time (sec) <0.5
Warm-up Time Up to 100% of the Full Light Output (sec) Instant full light
Product Data
Lamp Base GU5.3
Product Wattage (W) 4.7
Equivalent Wattage (W) 35
Reflector PAR16
Beam Angle (°) WFL (36)
Colour Temperature (K) Coolwhite (4000K)
Colour Render Index (Ra) Ra80
Colour Consistency (SDCM) ≤6
Dimmable No
Energy Label A+
Operating Temperature -30°C to +40°C
Switching Cycles (times) >1,000,000
Mercury Content (mg) N/A
Weight (g) 49
Application Hospitality, Residential
Performance Data
Max. Luminous Intensity (cd) 650
Total Luminous Flux (lm) 400
Luminous Flux in 90° cone (lm) 345
Rated Life (hrs) 15000
Lumen Maintenance at the End of Lamp Life (%) ≥70
Product Dimensions
Diameter (mm) 50
Length (mm) 45
Remarks
The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging. There is no measurable output from 180nm to 380nm, so the chart shows only 380nm to 800nm.
