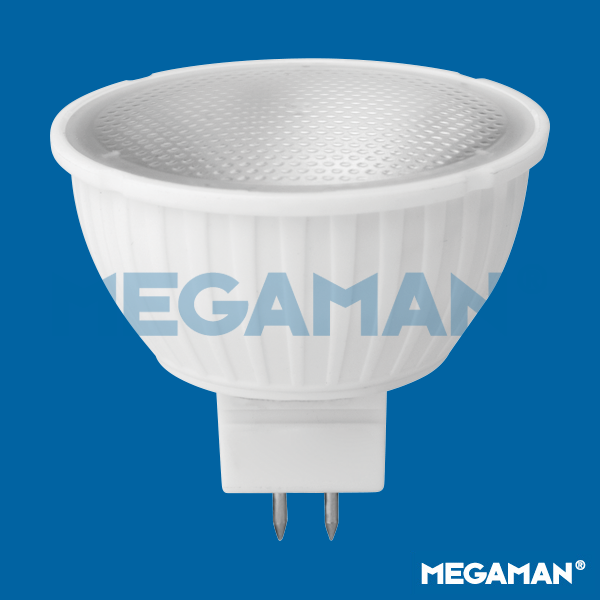

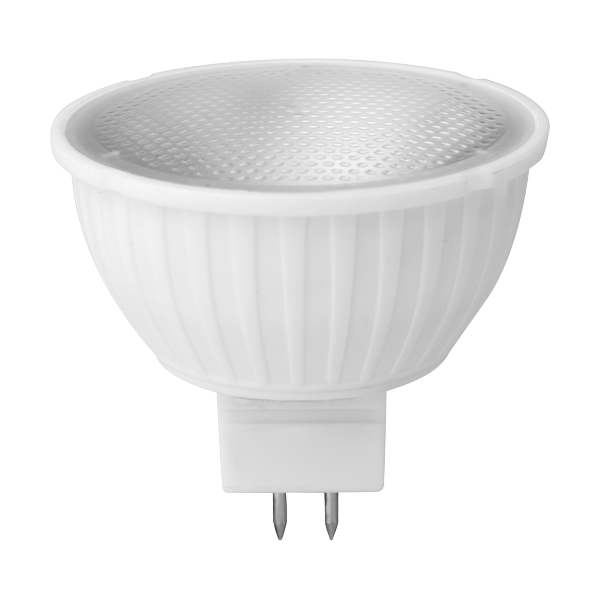

MR16 5W GU5.3 WFL 4000K

Economy Series

Spectral Power Distribution

Family Datasheet

Product Datasheet

Product Code:

Electrical Data
Voltage (V)	AC 12V
Product Data
Lamp Base	GU5.3
Product Wattage (W)	5
Reflector	MR16
Beam Angle (°)	WFL (36)
Colour Temperature (K)	Coolwhite (4000K)
Colour Render Index (Ra)	Ra80
Dimmable	No
Energy Label	A
Operating Temperature	-30°C to +40°C
Mercury Content (mg)	N/A
Weight (g)	28
Application	Retails, Hospitality
Performance Data
Max. Luminous Intensity (cd)	350
Total Luminous Flux (lm)	250
Luminous Flux in 90° cone (lm)	220
Rated Life (hrs)	15000
Lumen Maintenance at the End of Lamp Life (%)	≥70
Product Dimensions
Diameter (mm)	50
Length (mm)	47
Remarks The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging. There is no measurable output from 180nm to 380nm, so the chart shows only 380nm to 800nm.

Indoor
