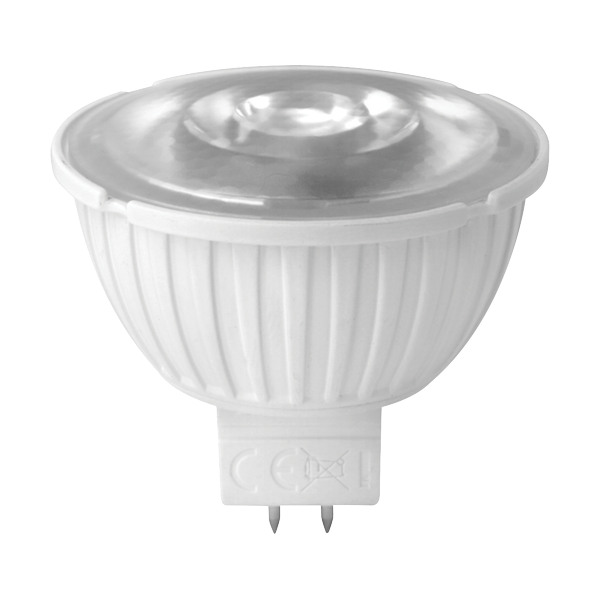

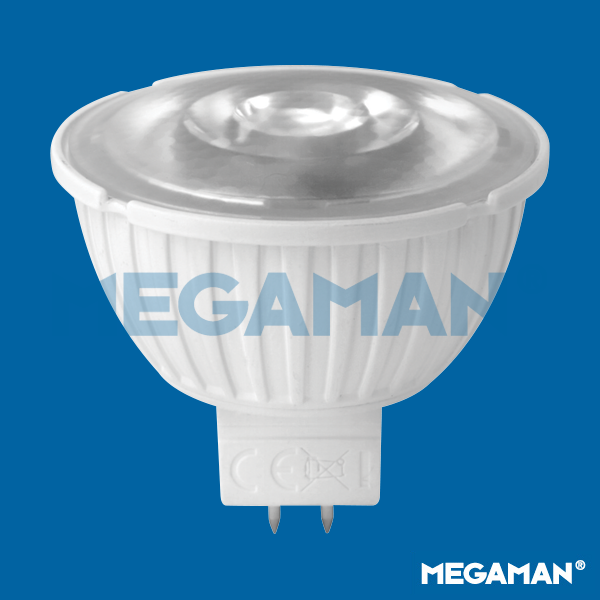

RichColour+ MR16 8W FL GU5.3 4000K DIMMABLE

MR16

     Family Datasheet
     Product Datasheet
Product Code:

ER3308dR9LN-FL-GU5.3-4000K-12V

Electrical Data
Voltage (V) AC 12V
Product Data
Lamp Base GU5.3
Product Wattage (W) 8
Reflector MR16
Beam Angle (°) FL (24)
Colour Temperature (K) Coolwhite (4000K)
Colour Render Index (Ra) Ra95
Dimmable 100-10%
Energy Label A
Operating Temperature -30°C to +40°C
Mercury Content (mg) N/A
Weight (g) 60
Application Hospitality, Residential
Performance Data
Max. Luminous Intensity (cd) 2400
Total Luminous Flux (lm) 500
Luminous Flux in 90° cone (lm) 420
Rated Life (hrs) 25000
Lumen Maintenance at the End of Lamp Life (%) ≥90%
Product Dimensions
Diameter (mm) 50
Length (mm) 49
Remarks

The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging. There is no measurable output from 180nm to 380nm, so the chart shows only 380nm to 800nm.

Technologies

  • Dimmable
    Being able to adjust your LEDs with wide selection of dimming range from 100% to 10% or 20% for perfect atmosphere and/or scene setting – warm and bright, dim and cozy.
