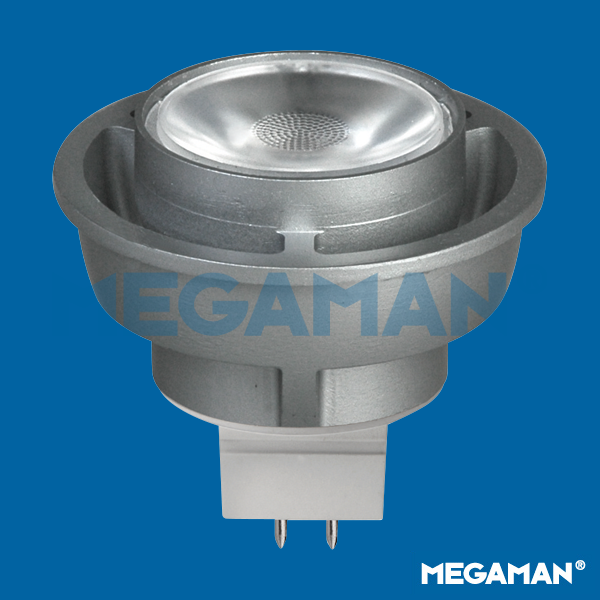

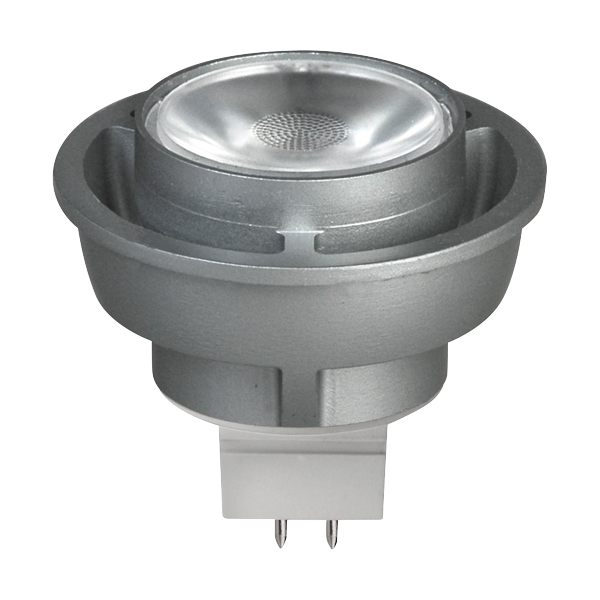

MR16 7.5W GU5.3 WFL 2800K

Smart Series

MEGAMAN LED

Conventional Lamp

Spectral Power Distribution

Family Datasheet

Product Datasheet

Product Code:

Electrical Data
Voltage (V)	AC 12V
Frequency (Hz)	50/60
Current (mA)	750
Product Data
Lamp Base	GU5.3
Product Wattage (W)	7.5
Reflector	MR16
Beam Angle (°)	WFL (36)
Colour Temperature (K)	Warmwhite (2800K)
Colour Render Index (Ra)	Ra82
Colour Consistency (SDCM)	SDCM <6
Dimmable	No
Energy Label	A+
Operating Temperature	-30°C to +40°C
Switching Cycles (times)	>1000000
Mercury Content (mg)	N/A
Weight (g)	43
Application	Retails, Hospitality
Performance Data
Max. Luminous Intensity (cd)	1800
Total Luminous Flux (lm)	500
Luminous Flux in 90° cone (lm)	420
Rated Life (hrs)	25000
Rated Life (hrs)	50000hrs
Lumen Maintenance at the End of Lamp Life (%)	≥90
Product Dimensions
Diameter (mm)	50
Length (mm)	51
Remarks The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging. There is no measurable output from 180nm to 380nm, so the chart shows only 380nm to 800nm.
