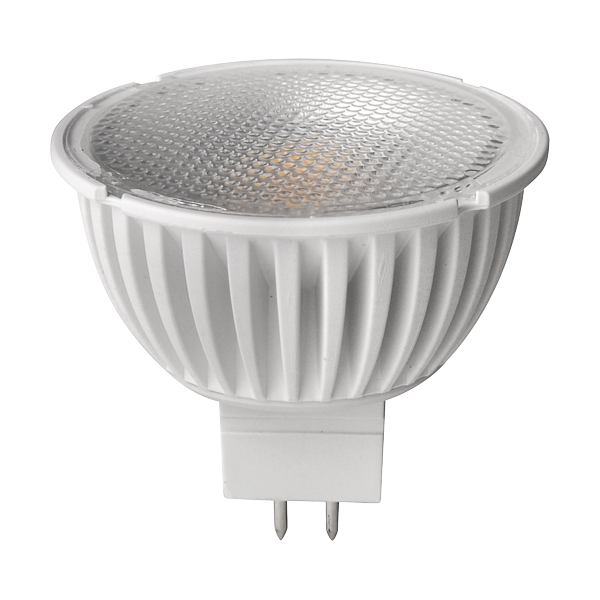

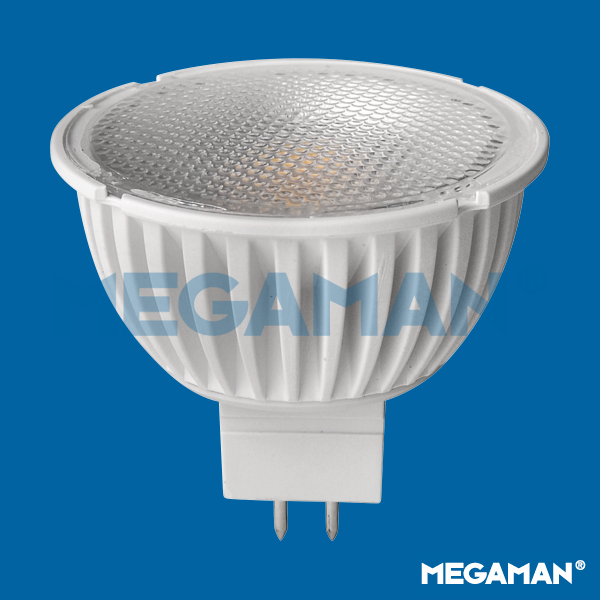

Please open the web page in browser.MR16 5W GU5.3 VWFL 2800K
Smart Series
-
Discontinued
Recommended Transformers
IES File
MEGAMAN LED
Conventional Lamp
Spectral Power Distribution
Family Datasheet
Product Datasheet
ER0605DGv2-VWFL-GU5.3-2800K-12V
| Electrical Data | |
| Voltage (V) | AC 12V |
| Frequency (Hz) | 50/60 |
| Current (mA) | 500 |
| Power Factor (λ) | > 0.4 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 100% of the Full Light Output (sec) | Instant full light |
| Product Data | |
| Lamp Base | GU5.3 |
| Product Wattage (W) | 5 |
| Reflector | MR16 |
| Beam Angle (°) | VWFL (60) |
| Colour Temperature (K) | Warmwhite (2800K) |
| Colour Render Index (Ra) | Ra80 |
| Colour Consistency (SDCM) | SDCM <6 |
| Dimmable | No |
| Energy Label | A+ |
| Operating Temperature | -30°C to +40°C |
| Switching Cycles (times) | >1000000 |
| Mercury Content (mg) | N/A |
| Weight (g) | 30 |
| Application | Retails, Hospitality |
| Performance Data | |
| Max. Luminous Intensity (cd) | 240 |
| Total Luminous Flux (lm) | 330 |
| Rated Life (hrs) | 25000 |
| Lumen Maintenance at the End of Lamp Life (%) | ≥90 |
| Product Dimensions | |
| Diameter (mm) | 50 |
| Length (mm) | 47 |
|
Remarks Driven by 12V Halogen Transformer |
|
