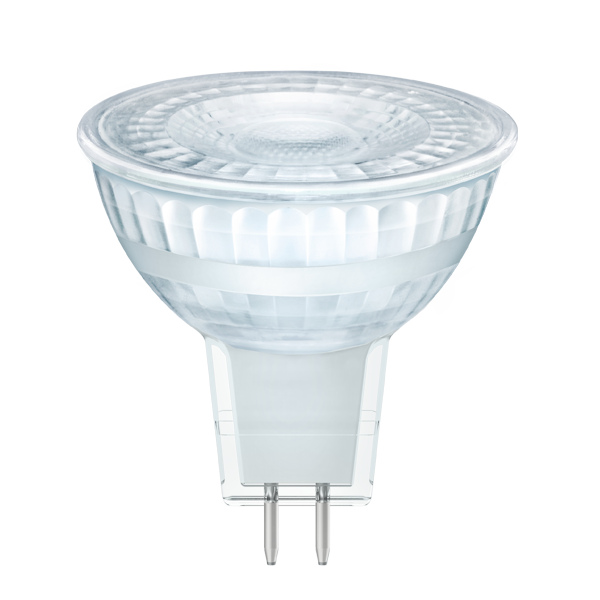

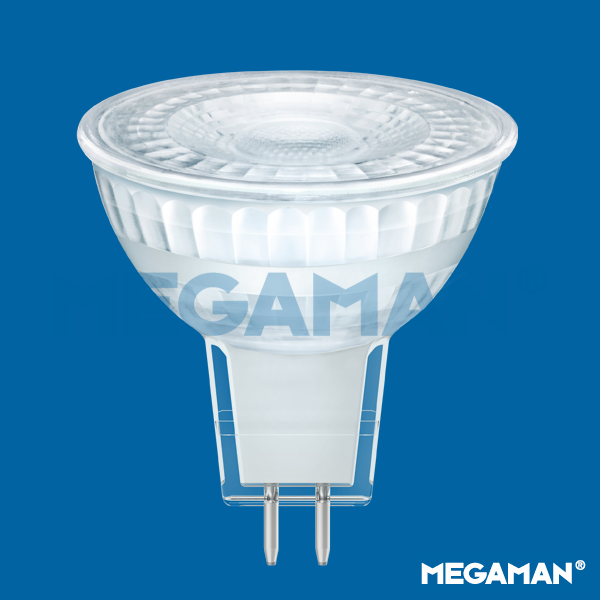

MR16 5.5W GU5.3 2800K

LED MR16

     Specification Sheet
Product Code:

ER045055-LNv00-WF+GU5.3+828+AC012

Electrical Data
Voltage (V) AC 12V
Power Factor (λ) >0.5
Starting Time (sec) <0.5
Warm-up Time Up to 100% of the Full Light Output (sec) Instant full light
Product Data
Lamp Base GU5.3
Product Wattage (W) 5.5
Equivalent Wattage (W) 35
Reflector MR16
Beam Angle (°) 36
Colour Temperature (K) Warmwhite (2800K)
Colour Render Index (Ra) Ra≥80
Colour Consistency (SDCM) ≤6
Energy Label A+
Operating Temperature -30°C to +45°C
Switching Cycles (times) >1,000,000
Weight (g) 43
Application Retail, Hospitality
Performance Data
Max. Luminous Intensity (cd) 700
Total Luminous Flux (lm) 345
Rated Life (hrs) 15,000
Lumen Maintenance at the End of Lamp Life (%) ≥70
Product Dimensions
Length (mm) 46
Width (mm) 50
Height (mm) 50
Remarks
The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging.
