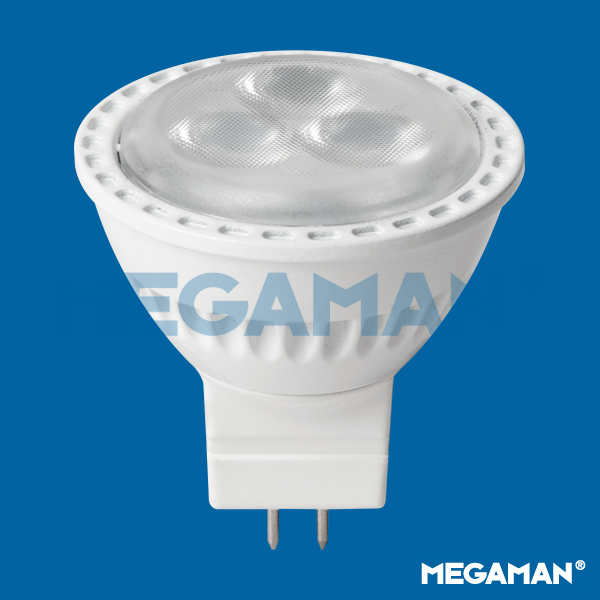

MR11 3W GU4 WF 2800K

LED MR11

     Specification Sheet
Product Code:

ER201030-LNv00-WF-GU4-828-AC012

Electrical Data
Voltage (V) AC 12V
Current (mA) 417
Power Factor (λ) >0.45
Starting Time (sec) <0.5
Warm-up Time Up to 100% of the Full Light Output (sec) Instant full light
Product Data
Lamp Base GU4
Product Wattage (W) 3
Equivalent Wattage (W) 24
Reflector MR11
Beam Angle (°) 36
Colour Temperature (K) Warmwhite (2800K)
Colour Render Index (Ra) Ra80
Colour Consistency (SDCM) ≤6
Operating Temperature -30°C to +40°C
Switching Cycles (times) >1,000,000
Mercury Content (mg) N/A
Weight (g) 19
Performance Data
Max. Luminous Intensity (cd) 380
Total Luminous Flux (lm) 230
Rated Life (hrs) 25000
Lumen Maintenance at the End of Lamp Life (%) ≥90
Product Dimensions
Diameter (mm) 35
Length (mm) 38
Remarks
The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging. There is no measurable output from 180nm to 380nm, so the chart shows only 380nm to 800nm.
