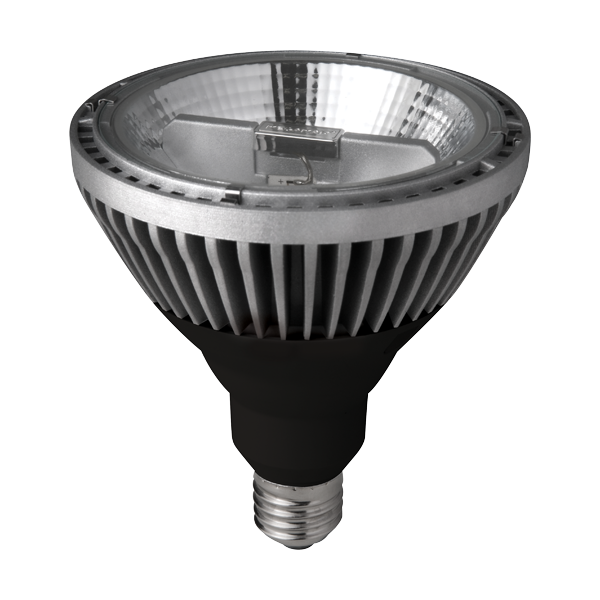

Please open the web page in browser.PAR38 16W E27 2800K
Smart Series
IES File
LR1916-FL-E27-2800K-230V
| Electrical Data | |
| Voltage (V) | 220-240V |
| Frequency (Hz) | 50/60 |
| Power Factor (λ) | > 0.5 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 100% of the Full Light Output (sec) | Instant full light |
| Product Data | |
| Lamp Base | E27 |
| Product Wattage (W) | 16 |
| Reflector | PAR38 |
| Beam Angle (°) | FL (25) |
| Colour Temperature (K) | Warmwhite (2800K) |
| Colour Render Index (Ra) | Ra80 |
| Colour Consistency (SDCM) | SDCM <6 |
| Dimmable | No |
| Energy Label | A |
| Operating Temperature | -30°C to +40°C |
| Switching Cycles (times) | >1000000 |
| Mercury Content (mg) | N/A |
| Weight (g) | 461 |
| Application | Retails, Residential |
| Performance Data | |
| Max. Luminous Intensity (cd) | 6000 |
| Total Luminous Flux (lm) | 950 |
| Luminous Flux in 90° cone (lm) | 800 |
| Rated Life (hrs) | 25000 |
| Rated Life (hrs) | 50000hrs |
| Lumen Maintenance at the End of Lamp Life (%) | ≥90 |
| IP Rating | IP54 |
| Product Dimensions | |
| Diameter (mm) | 121 |
| Length (mm) | 133 |
|
Remarks Water resistant outdoor version, this is designed to maintain the IP rating of the light fitting used (up to a maximum of IP54). The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging. There is no measurable output from 180nm to 380nm, so the chart shows only 380nm to 800nm. |
|
Technologies
-
Using patented Thermal Conductive Highway™ technology and a unique design of ‘heat drain’ across the reflector to dissipate heat efficiently from the dual axial LED to prevent deterioration of the chips and other components.
