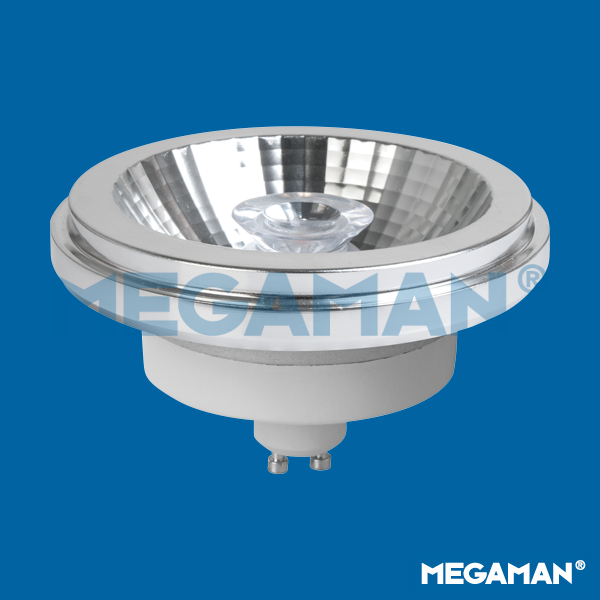

Hybrid Reflector-AR111 11W GU10 8D 2800K U-DIM

AR111

A
U-DIM





MEGAMAN LED

Conventional Lamp
Photometric Diagram
Lux-cone Diagram
Spectral Power Distribution
Spectral Power Distribution
Product Code:

LR6511dHR-75H08D-GU10-2800K-230V

Electrical Data
Voltage (V) 220-240V
Power Factor (λ) > 0.9
Starting Time (sec) <0.5
Warm-up Time Up to 100% of the Full Light Output (sec) Instant full light
Product Data
Lamp Base GU10
Product Wattage (W) 11
Reflector AR111
Beam Angle (°) 8
Colour Temperature (K) Warmwhite (2800K)
Colour Render Index (Ra) Ra82
Colour Consistency (SDCM) ≤6
Dimmable 100-5%
Energy Label A
Operating Temperature -30°C to +40°C
Switching Cycles (times) >1,000,000
Mercury Content (mg) N/A
Weight (g) 190
Application Hospitality, Residential
Performance Data
Max. Luminous Intensity (cd) 16000
Total Luminous Flux (lm) 750
Luminous Flux in 90° cone (lm) 650
Rated Life (hrs) 40000
Lumen Maintenance at the End of Lamp Life (%) ≥85
Product Dimensions
Diameter (mm) 111
Length (mm) 66
Remarks
The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging. There is no measurable output from 180nm to 380nm, so the chart shows only 380nm to 800nm.

Technologies

  • U-DIM
    Compatible with the widest range of existing dimmers, whether they are leading-edge or trailing edge dimmers, with enhanced dimming range of 100% to 5%.
