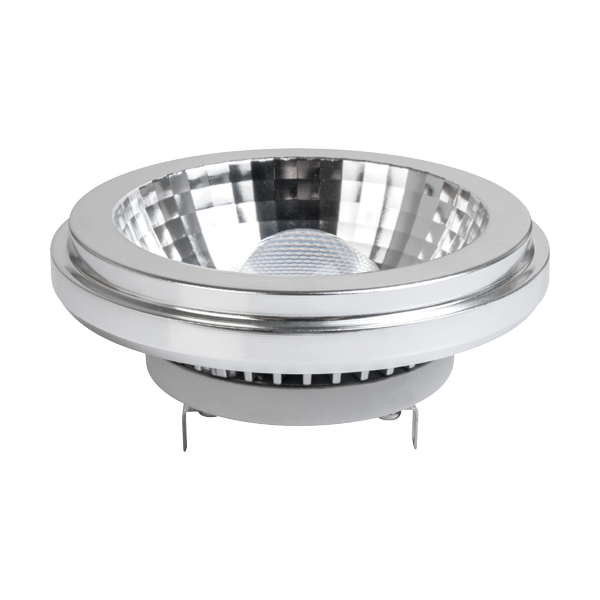

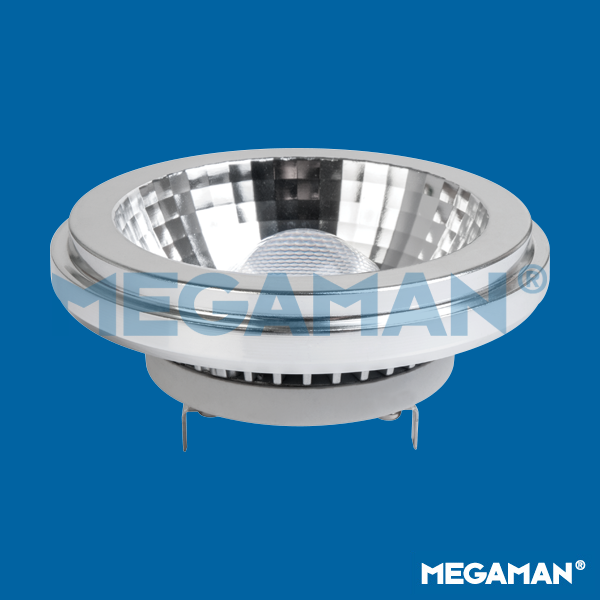

Please open the web page in browser.Hybrid Reflector-AR111 13W G53 45D 2800K DIMMABLE
Professional Series
Instruction Manual
IES File
Family Datasheet
Product Datasheet
ER4113dHR-75H45D-G53-2800K-12V
| Electrical Data | |
| Voltage (V) | AC 12V |
| Current (mA) | 1100 |
| Power Factor (λ) | > 0.9 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 100% of the Full Light Output (sec) | Instant full light |
| Product Data | |
| Lamp Base | G53 |
| Product Wattage (W) | 13 |
| Equivalent Wattage (W) | >100 |
| Reflector | AR111 |
| Beam Angle (°) | 45 |
| Colour Temperature (K) | Warmwhite (2800K) |
| Colour Render Index (Ra) | Ra82 |
| Colour Consistency (SDCM) | SDCM ≤6 |
| Dimmable | 100-10% |
| Energy Label | A |
| Operating Temperature | -30°C to +40°C |
| Switching Cycles (times) | >1000000 |
| Mercury Content (mg) | N/A |
| Weight (g) | 185 |
| Application | Retails, Hospitality Installations |
| Performance Data | |
| Max. Luminous Intensity (cd) | 2000 |
| Total Luminous Flux (lm) | 900 |
| Luminous Flux in 90° cone (lm) | 850 |
| Rated Life (hrs) | 40000 |
| Lumen Maintenance at the End of Lamp Life (%) | ≥85 |
| Product Dimensions | |
| Diameter (mm) | 111 |
| Length (mm) | 58 |
|
Remarks The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging. There is no measurable output from 180nm to 380nm, so the chart shows only 380nm to 800nm. |
|
Technologies
-
Being able to adjust your LEDs with wide selection of dimming range from 100% to 10% or 20% for perfect atmosphere and/or scene setting – warm and bright, dim and cozy.
