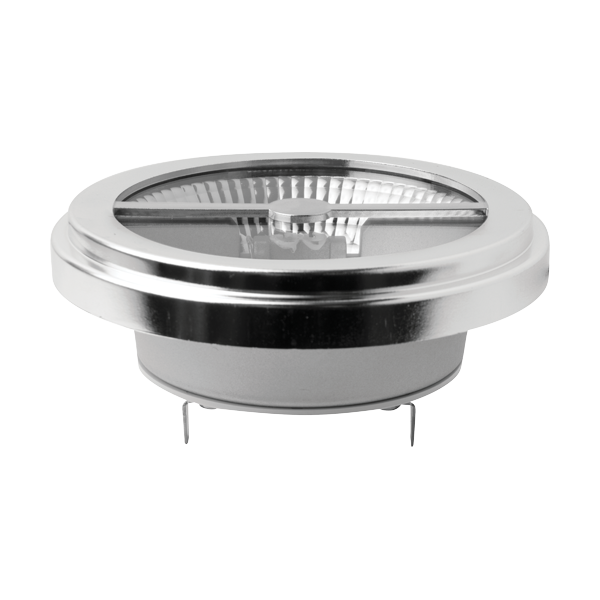

Dim-to-Warm-AR111 12W G53 45D 2800K

AR111

Family Datasheet

Product Datasheet

Product Code:

Electrical Data
Voltage (V)	DC 36V
Current (mA)	350
Product Data
Lamp Base	G53
Product Wattage (W)	12
Reflector	AR111
Beam Angle (°)	45
Colour Temperature (K)	Warmwhite (2800K)
Colour Render Index (Ra)	Ra82
Dimmable	Yes
Energy Label	A
Operating Temperature	-30°C to +40°C
Mercury Content (mg)	N/A
Weight (g)	225
Application	Retails, Hospitality
Performance Data
Max. Luminous Intensity (cd)	2000
Total Luminous Flux (lm)	850
Luminous Flux in 90° cone (lm)	750
Rated Life (hrs)	40000
Product Dimensions
Diameter (mm)	111
Length (mm)	58
Remarks Capable of linear dimming from 100% to 1% when connected to a LED constant current reduction converter with output current of 350mA and voltage DC 36V and DC1-10V dimmer. If the lamps are connected to a MEGAMAN^® LED converter LD0214x1d-C350, the dimming range is 100% to 10%. The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging. There is no measurable output from 180nm to 380nm, so the chart shows only 380nm to 800nm.

Following exactly the dimming curve of familiar incandescent and halogen lamps, the LED lamps could simultaneously emit a warmer light when they are dimmed from 100% to 5%.
Using patented Thermal Conductive Highway™ technology and a unique design of ‘heat drain’ across the reflector to dissipate heat efficiently from the dual axial LED to prevent deterioration of the chips and other components.

Indoor
