Fire Rated Downlight

Photometric Diagram
Lux-cone Diagram
Spectral Power Distribution
Spectral Power Distribution
     Family Datasheet
     Product Datasheet
Product Code:


Electrical Data
Voltage (V) 220-240V
Frequency (Hz) 50/60 Hz
Current (mA) 30
Power Factor (λ) > 0.7
Starting Time (sec) < 0.5 s
Warm-up Time Up to 60% of the Full Light Output (sec) Instant
Product Data

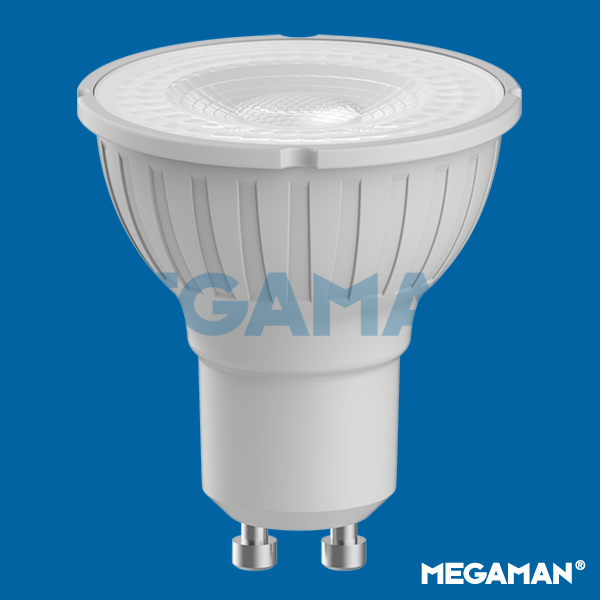

Lamp Base GU10
Product Wattage (W) 5
Equivalent Wattage (W) 50
Beam Angle (°) 36
Colour Temperature (K) 6500
Colour Render Index (Ra) Ra80
Colour Consistency (SDCM) 6
Dimmable 100-10%
Operating Temperature -30°C to +45°C
Switching Cycles (times) > 100000
Weight (g) 33
Application Art Galleries, Hotels, Residential Interiors, Restaurants, Showcase Displays
Performance Data
Max. Luminous Intensity (cd) 680
Total Luminous Flux (lm) 410
Luminous Flux in 90° cone (lm) 345
Luminous Efficacy (lm/W) 82
Rated Life (hrs) 25000 at 45°C
Product Dimensions
Diameter (mm) 50
Width (mm) 50
Height (mm) 55


  • Fire Rated Downlight
    Work well under fire rated downlights at 45°C.
  • Dimmable
    Being able to adjust your LEDs with wide selection of dimming range from 100% to 10% or 20% for perfect atmosphere and/or scene setting – warm and bright, dim and cozy.
