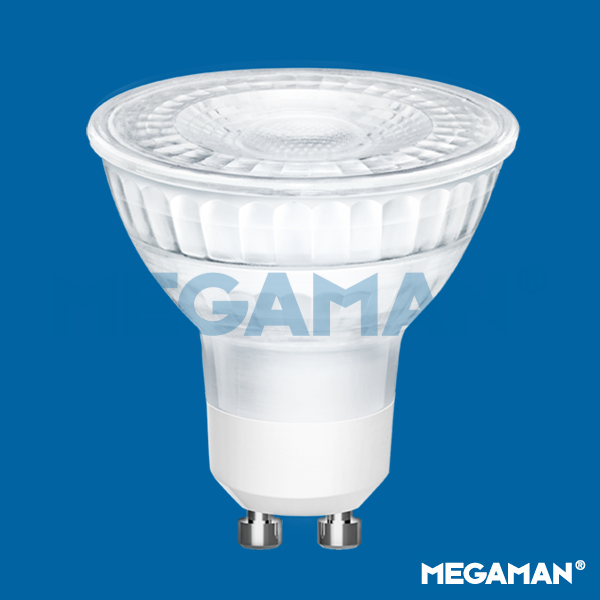

LR6305LN-WFL+036D+GU10+828+V0240
| Electrical Data | |
| Voltage (V) | 220-240V |
| Frequency (Hz) | 50/60 Hz |
| Current (mA) | 55 |
| Power Factor (λ) | > 0.5 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 60% of the Full Light Output (sec) | Instant |
| Product Data | |
| Lamp Base | GU10 |
| Product Wattage (W) | 5 |
| Equivalent Wattage (W) | > 50 |
| Beam Angle (°) | 36 |
| Colour Temperature (K) | Warmwhite (2800K) |
| Colour Render Index (Ra) | ≥ Ra80 |
| Colour Consistency (SDCM) | SDCM ≤6 |
| Dimmable | No |
| Operating Temperature | -30°C to +45°C |
| Switching Cycles (times) | >100000 |
| Weight (g) | 48 |
| Application | Art Galleries, Display Cabinets, Hotel Lobbies, Residential Interiors, Restaurants, Shops |
| Performance Data | |

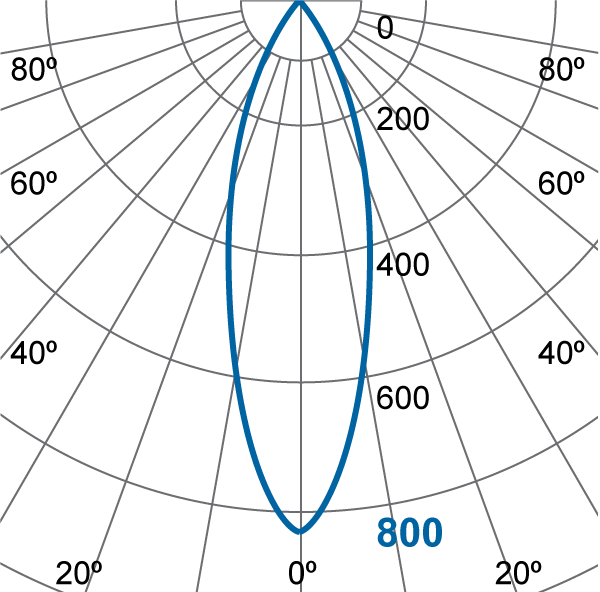

| Max. Luminous Intensity (cd) | 800 |
| Luminous Flux in 90° cone (lm) | 450 |
| Luminous Efficacy (lm/W) | 104 |
| Rated Life (hrs) | 15000 |
| Product Dimensions | |
| Diameter (mm) | 50 |
| Height (mm) | 55 |
