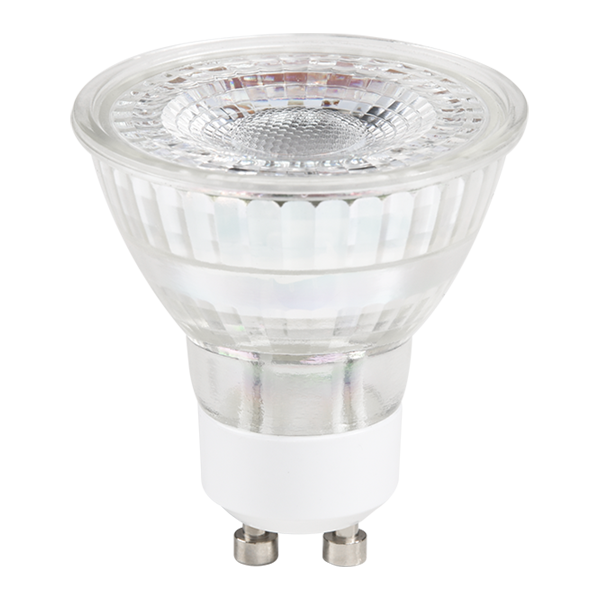

Please open the web page in browser.35W/3.1W GU10 230lm 2700K Ra80 Non-Dim
PAR16 Glass
IES File
Technical Document (PDF)
Family Datasheet
Product Datasheet
LR6303.1LN-WFL+GU10+827+V0240
| Electrical Data | |
| Voltage (V) | 220-240V |
| Frequency (Hz) | 50/60 Hz |
| Current (mA) | 30 |
| Power Factor (λ) | ≥ 0.40 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 60% of the Full Light Output (sec) | Instant |
| Product Data | |
| Lamp Base | GU10 |
| Product Wattage (W) | 3.1 |
| Equivalent Wattage (W) | 35 |
| Colour Temperature (K) | 2700 |
| Colour Render Index (Ra) | Ra80 |
| Colour Consistency (SDCM) | 6 |
| Dimmable | No |
| Operating Temperature | -30°C to +45°C |
| Switching Cycles (times) | > 100000 |
| Weight (g) | 42 |
| Application | Art Galleries, Display Cabinets, Hotels, Restaurants, Showcase Displays |
| Performance Data | |
| Max. Luminous Intensity (cd) | 450 |
| Total Luminous Flux (lm) | 270 |
| Luminous Flux in 90° cone (lm) | 230 |
| Luminous Efficacy (lm/W) | 87 |
| Rated Life (hrs) | 15000 |
| Product Dimensions | |
| Diameter (mm) | 50 |
| Width (mm) | 50 |
| Height (mm) | 55 |
