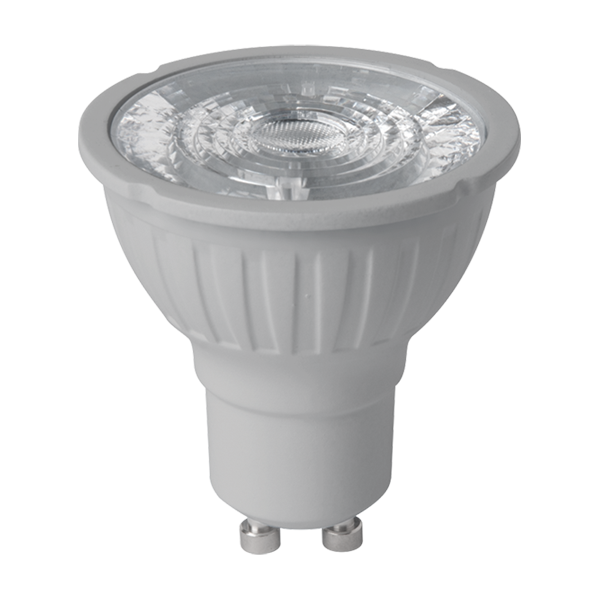

50W/5.3W GU10 500lm 4000K Ra80 DBT U-Dim

PAR16 DBT

Spectral Power Distribution

Family Datasheet

Product Datasheet

Product Code:

Electrical Data
Voltage (V)	220-240V
Frequency (Hz)	50/60 Hz
Current (mA)	27
Current (mA)	27
Power Factor (λ)	> 0.7
Starting Time (sec)	< 0.5 s
Warm-up Time Up to 60% of the Full Light Output (sec)	Instant
Product Data
Lamp Base	GU10
Product Wattage (W)	5.3
Equivalent Wattage (W)	50
Reflector	PAR16

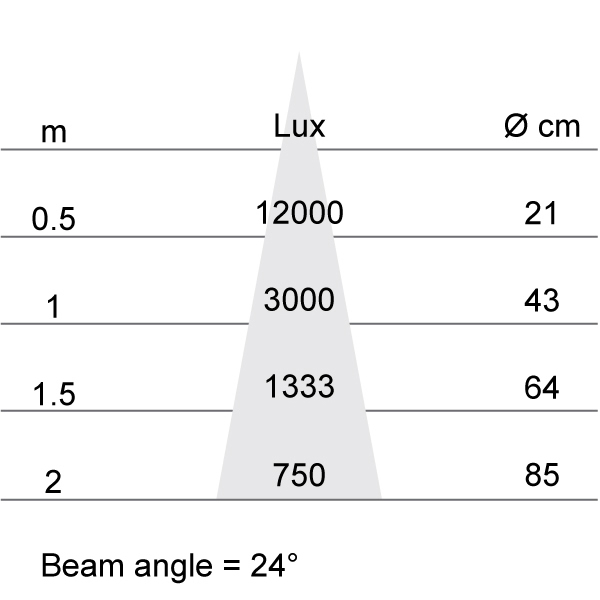

Beam Angle (°)	[DBT] 24 / 35
Colour Temperature (K)	4000
Colour Render Index (Ra)	Ra80
Colour Consistency (SDCM)	6
Dimmable	100-5%
Operating Temperature	-30°C to +45°C
Switching Cycles (times)	> 100000
Weight (g)	42
Application	Galleries and Museums, Hotels, Meeting Rooms, Restaurants, Showcase Displays
Performance Data
Max. Luminous Intensity (cd)	3000 [24°] / 1800 [35°]
Luminous Flux in 90° cone (lm)	500
Luminous Efficacy (lm/W)	104
Rated Life (hrs)	25000 at 45°C
Product Dimensions
Diameter (mm)	50
Width (mm)	50
Height (mm)	56
Remarks The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging.

Work well under fire rated downlights at 45°C.
Compatible with the widest range of existing dimmers, whether they are leading-edge or trailing edge dimmers, with enhanced dimming range of 100% down to 5%.
The innovative Dual Beam Technology empowers commercial users to have two beam angles in one single lamp/luminaire. It offers high flexibility of changing the beam angles onsite for different application requirements.

Indoor
