50W/5.3W GU10 500lm 2700K Ra80 DBT U-Dim

PAR16 DBT

     Family Datasheet
     Product Datasheet
Product Code:

LR211053/dm/db-HRv00-2B+024D035D+GU10+827+V0240

Electrical Data
Voltage (V) 220-240V
Frequency (Hz) 50/60 Hz
Current (mA) 27
Current (mA) 27
Power Factor (λ) > 0.7
Starting Time (sec) < 0.5 s
Warm-up Time Up to 60% of the Full Light Output (sec) Instant
Product Data
Lamp Base GU10
Product Wattage (W) 5.3
Equivalent Wattage (W) 50
Reflector PAR16
Beam Angle (°) [DBT] 24 / 35
Colour Temperature (K) 2700
Colour Render Index (Ra) Ra80
Colour Consistency (SDCM) 6
Dimmable 100-5%
Operating Temperature -30°C to +45°C
Switching Cycles (times) > 100000
Weight (g) 42
Application Galleries and Museums, Hotels, Meeting Rooms, Restaurants, Showcase Displays
Performance Data

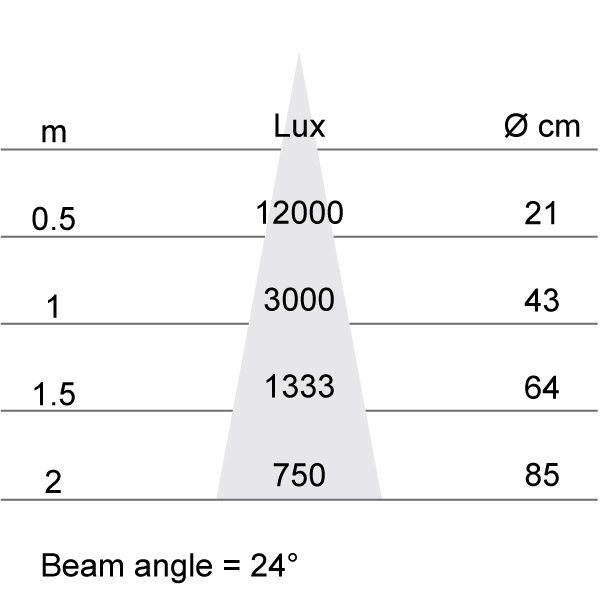

Max. Luminous Intensity (cd) 3000 [24°] / 1800 [35°]
Luminous Flux in 90° cone (lm) 500
Luminous Efficacy (lm/W) 104
Rated Life (hrs) 25000 at 45°C
Product Dimensions
Diameter (mm) 50
Width (mm) 50
Height (mm) 56
Remarks
The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging.

Technologies

  • Fire Rated Downlight
    Work well under fire rated downlights at 45°C.
  • U-DIM
    Compatible with the widest range of existing dimmers, whether they are leading-edge or trailing edge dimmers, with enhanced dimming range of 100% down to 5%.
  • Dual Beam Technology
    The innovative Dual Beam Technology empowers commercial users to have two beam angles in one single lamp/luminaire. It offers high flexibility of changing the beam angles onsite for different application requirements.
