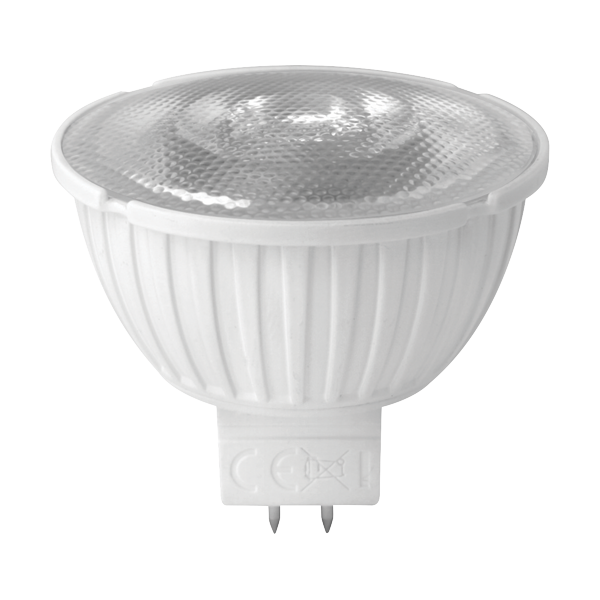

MR16 8W GU5.3 WFL 4000K DIMMABLE

Smart Series

MEGAMAN LED

Conventional Lamp

Family Datasheet

Product Datasheet

Product Code:

Electrical Data
Voltage (V)	AC 12V
Frequency (Hz)	50/60
Product Data
Lamp Base	GU5.3
Product Wattage (W)	8
Reflector	MR16
Beam Angle (°)	WFL (36)
Colour Temperature (K)	Coolwhite (4000K)
Colour Render Index (Ra)	Ra85
Dimmable	100-10%
Operating Temperature	-22°F to +104°F
Mercury Content (mg)	N/A
Weight (g)	60g / 0.132lbs
Application	Retails, Hospitality
Performance Data
Max. Luminous Intensity (cd)	1800
Total Luminous Flux (lm)	600
Luminous Flux in 90° cone (lm)	500
Rated Life (hrs)	25000
Product Dimensions
Diameter (mm)	50mm / 1 31/32inch
Length (mm)	49mm / 1 59/64inch
Remarks The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging. There is no measurable output from 180nm to 380nm, so the chart shows only 380nm to 800nm.

Being able to adjust your LEDs with wide selection of dimming range from 100% to 10% or 20% for perfect atmosphere and/or scene setting – warm and bright, dim and cozy.

Indoor
