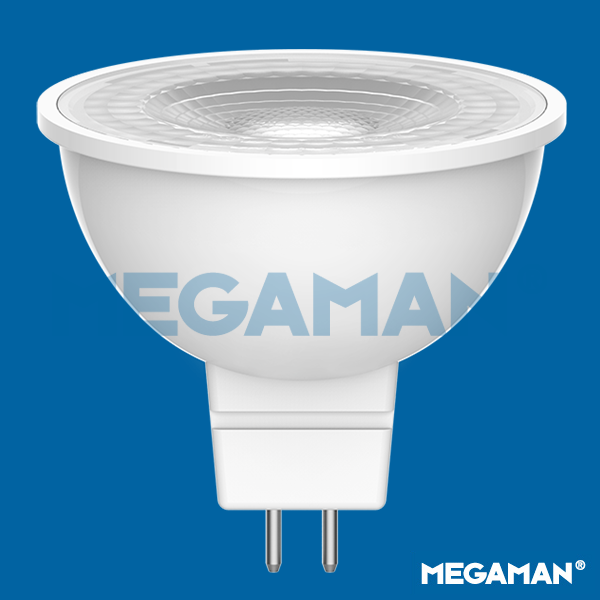

35W/4.4W GU5.3 345lm 6500K Ra80 Non-Dim

MR16

Spectral Power Distribution

Family Datasheet

Product Datasheet

Product Code:

Electrical Data
Voltage (V)	12 V
Current (mA)	550
Power Factor (λ)	≥ 0.50
Starting Time (sec)	< 0.5 s
Warm-up Time Up to 60% of the Full Light Output (sec)	Instant
Product Data
Lamp Base	GU5.3
Product Wattage (W)	4.4
Equivalent Wattage (W)	35
Colour Temperature (K)	6500
Colour Render Index (Ra)	Ra80
Colour Consistency (SDCM)	6
Dimmable	No
Operating Temperature	-30°C to +45°C
Switching Cycles (times)	> 100000
Weight (g)	24
Application	Art Galleries, Gardens, Hotels, Retail Displays, Showcase Displays
Performance Data
Max. Luminous Intensity (cd)	700
Luminous Flux in 90° cone (lm)	345
Luminous Efficacy (lm/W)	89
Rated Life (hrs)	15000
Product Dimensions
Diameter (mm)	50
Width (mm)	50
Height (mm)	46

Indoor
