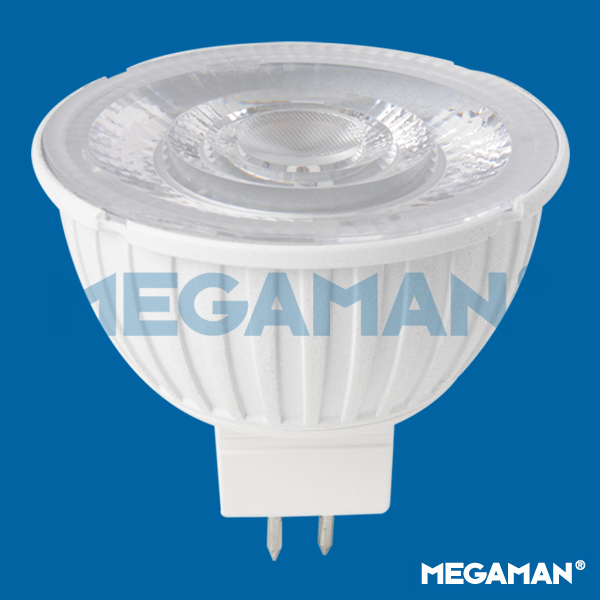

MR16

     Family Datasheet
     Product Datasheet
Product Code:

ER200065/dw/ru-HRv00-WF+GU5.3+930918+C0350

Electrical Data
Voltage (V) DC 16-20V
Current (mA) 350
Power Factor (λ) ≥ 0.50
Starting Time (sec) < 0.5 s
Warm-up Time Up to 60% of the Full Light Output (sec) Instant
Product Data
Lamp Base GU5.3
Product Wattage (W) 6.5
Equivalent Wattage (W) 39
Colour Temperature (K) Dim to Warm (3000-1800)
Colour Render Index (Ra) Ra97
Colour Consistency (SDCM) 6
Dimmable 100-1%
Operating Temperature -30°C to +40°C
Switching Cycles (times) > 100000
Weight (g) 45
Application Art Galleries, Gardens, Hotels, Retail Displays, Showcase Displays
Performance Data

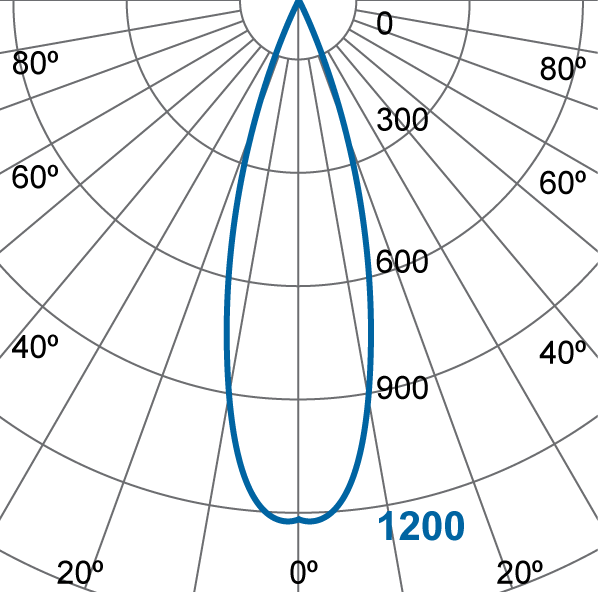

Max. Luminous Intensity (cd) 1200
Luminous Flux in 90° cone (lm) 400
Luminous Efficacy (lm/W) 66
Rated Life (hrs) 40000
Product Dimensions
Diameter (mm) 50
Width (mm) 50
Height (mm) 46

Technologies

  • Dim-to-Warm
    Following exactly the dimming curve of familiar incandescent and halogen lamps, the LED lamps could simultaneously emit a warmer light when they are dimmed from 100% to 5%.
