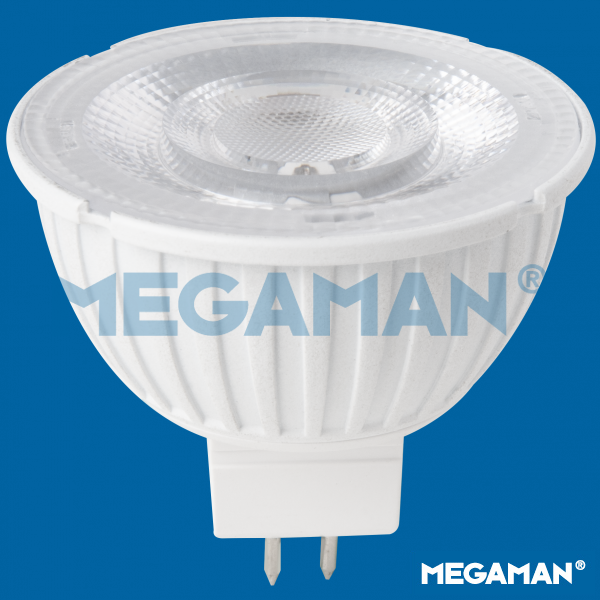

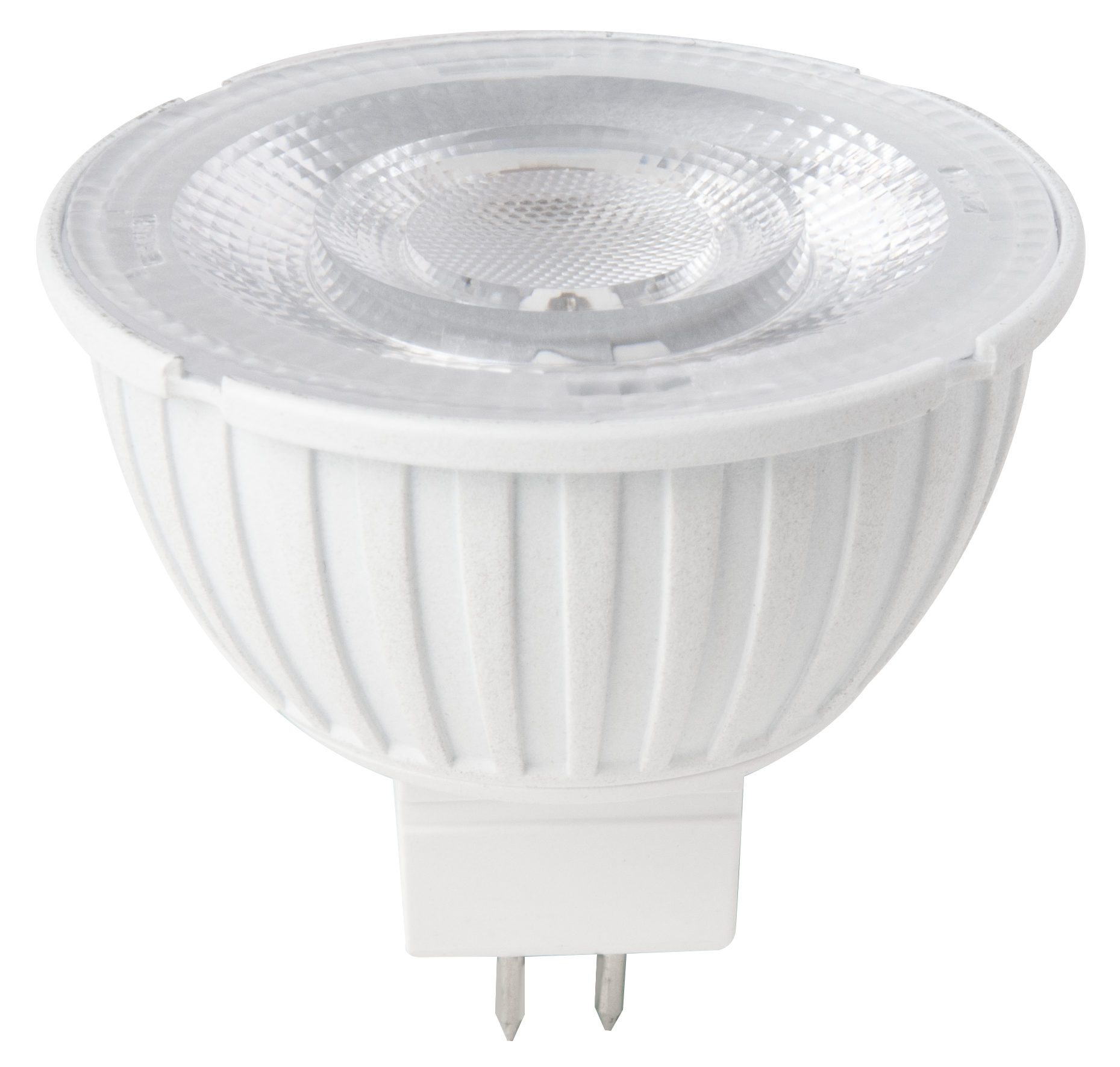

U-DIM-MR16 6.5W 24D GU5.3 2800K

Smart Series

MEGAMAN LED

Conventional Lamp

Spectral Power Distribution

Family Datasheet

Product Datasheet

Product Code:

Electrical Data
Voltage (V)	DC 16-20V
Current (mA)	350
Power Factor (λ)	1
Starting Time (sec)	< 0.5 s
Warm-up Time Up to 100% of the Full Light Output (sec)	Instant full light
Product Data
Lamp Base	GU5.3
Product Wattage (W)	6.5
Equivalent Wattage (W)	>50
Reflector	MR16
Beam Angle (°)	24
Colour Temperature (K)	Warmwhite (2800K)
Colour Render Index (Ra)	Ra82
Colour Consistency (SDCM)	SDCM ≤6
Dimmable	100-1%
Energy Label	A++
Operating Temperature	-30°C to +40°C
Switching Cycles (times)	>1000000
Mercury Content (mg)	N/A
Weight (g)	43
Application	Hospitality, Residential
Performance Data
Max. Luminous Intensity (cd)	3000
Total Luminous Flux (lm)	700
Luminous Flux in 90° cone (lm)	650
Rated Life (hrs)	35000
Lumen Maintenance at the End of Lamp Life (%)	≥90
Product Dimensions
Diameter (mm)	50
Length (mm)	46
Remarks The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging. There is no measurable output from 180nm to 380nm, so the chart shows only 380nm to 800nm.

Compatible with the widest range of existing dimmers, whether they are leading-edge or trailing edge dimmers, with enhanced dimming range of 100% down to 5%.

Indoor
