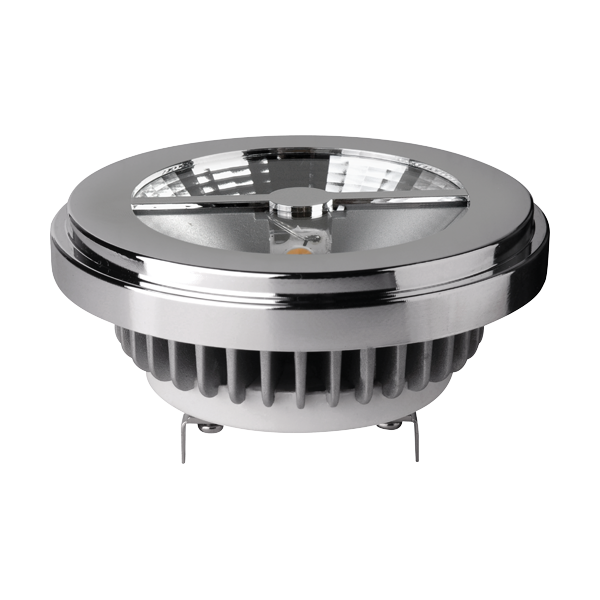

Brilliant Tone-AR111 15W G53 45D 5500K DIMMABLE

Professional Series

MEGAMAN LED

Conventional Lamp

Spectral Power Distribution

Product Code:

Electrical Data
Voltage (V)	AC 12V
Power Factor (λ)	> 0.5
Starting Time (sec)	< 0.5 s
Warm-up Time Up to 100% of the Full Light Output (sec)	Instant full light
Product Data
Lamp Base	G53
Product Wattage (W)	15
Equivalent Wattage (W)	>100
Reflector	AR111
Beam Angle (°)	45
Colour Temperature (K)	Daylight (5500K)
Colour Render Index (Ra)	Ra80
Colour Consistency (SDCM)	SDCM <6
Dimmable	100-10%
Energy Label	A
Operating Temperature	-30°C to +40°C
Switching Cycles (times)	>1000000
Mercury Content (mg)	N/A
Weight (g)	275
Application	Retails, Hospitality
Performance Data
Max. Luminous Intensity (cd)	2000
Total Luminous Flux (lm)	850
Rated Life (hrs)	25000
Lumen Maintenance at the End of Lamp Life (%)	≥90
Product Dimensions
Diameter (mm)	111
Length (mm)	62
Remarks The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging. There is no measurable output from 180nm to 380nm, so the chart shows only 380nm to 800nm.

Being able to adjust your LEDs with wide selection of dimming range from 100% to 10% or 20% for perfect atmosphere and/or scene setting – warm and bright, dim and cozy.
Using patented Thermal Conductive Highway™ technology and a unique design of ‘heat drain’ across the reflector to dissipate heat efficiently from the dual axial LED to prevent deterioration of the chips and other components.

Indoor
