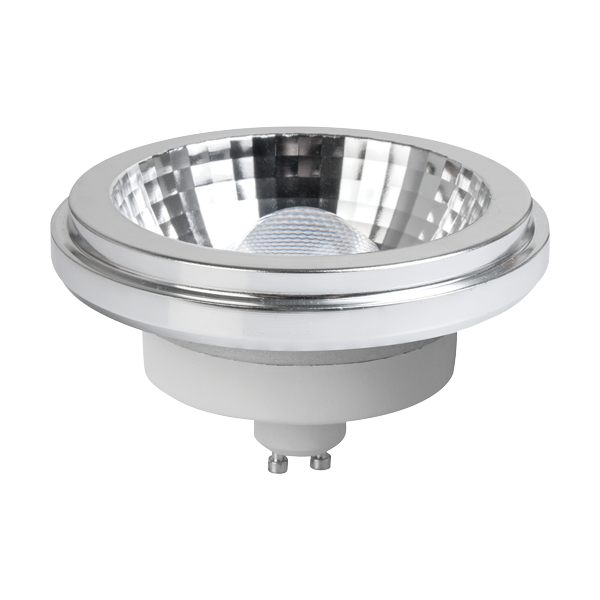

Hybrid Reflector-AR111 11W GU10 45D 2800K U-DIM

Professional Series

MEGAMAN LED

Conventional Lamp

Spectral Power Distribution

Family Datasheet

Product Datasheet

Product Code:

Electrical Data
Voltage (V)	220-240V
Power Factor (λ)	> 0.9
Starting Time (sec)	< 0.5 s
Warm-up Time Up to 100% of the Full Light Output (sec)	Instant full light
Product Data
Lamp Base	GU10
Product Wattage (W)	11
Reflector	AR111
Beam Angle (°)	45
Colour Temperature (K)	Warmwhite (2800K)
Colour Render Index (Ra)	Ra82
Colour Consistency (SDCM)	SDCM ≤6
Dimmable	100-5%
Energy Label	A+
Operating Temperature	-30°C to +40°C
Switching Cycles (times)	>1000000
Mercury Content (mg)	N/A
Weight (g)	190
Application	Retails, Hospitality
Performance Data
Max. Luminous Intensity (cd)	2000
Total Luminous Flux (lm)	900
Luminous Flux in 90° cone (lm)	850
Rated Life (hrs)	40000
Lumen Maintenance at the End of Lamp Life (%)	≥85
Product Dimensions
Diameter (mm)	111
Length (mm)	66
Remarks The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging. There is no measurable output from 180nm to 380nm, so the chart shows only 380nm to 800nm.

Compatible with the widest range of existing dimmers, whether they are leading-edge or trailing edge dimmers, with enhanced dimming range of 100% down to 5%.
Being able to adjust your LEDs with wide selection of dimming range from 100% to 10% or 20% for perfect atmosphere and/or scene setting – warm and bright, dim and cozy.

Indoor
