50W/10W GU10 620/660lm 1800-3000K Ra97 DBT Dim-to-Warm U-Dim

AR111

     Family Datasheet
     Product Datasheet
Product Code:

LR212100/dw/db/ru-HRv00-2B+024D045D+GU10+930918+V0240

Electrical Data
Voltage (V) 220-240V
Frequency (Hz) 50/60 Hz
Current (mA) 48
Power Factor (λ) > 0.9
Starting Time (sec) < 0.5 s
Warm-up Time Up to 60% of the Full Light Output (sec) Instant
Product Data
Lamp Base GU10
Product Wattage (W) 10

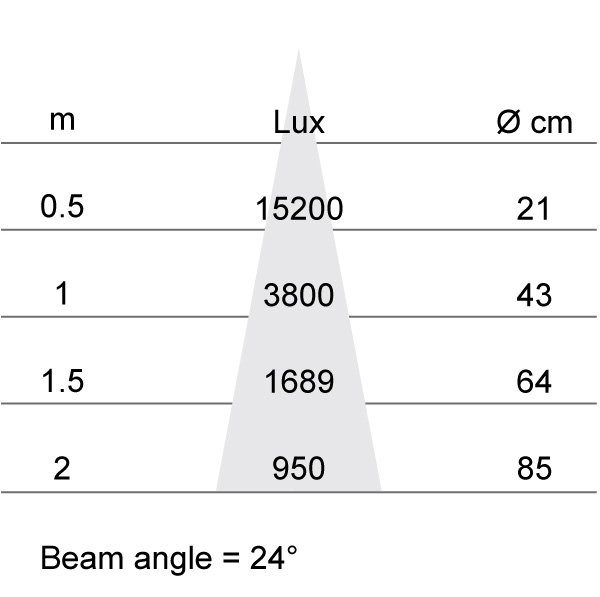

Beam Angle (°) [DBT] 24 / 45
Colour Temperature (K) 3000-1800
Colour Render Index (Ra) Ra97
Colour Consistency (SDCM) SDCM ≤4
Dimmable 100-5%
Operating Temperature -30°C to +40°C
Switching Cycles (times) >1000000
Weight (g) 245
Application Exhibition Rooms, Hotels, Meeting Rooms, Museums, Restaurants, Shops
Performance Data

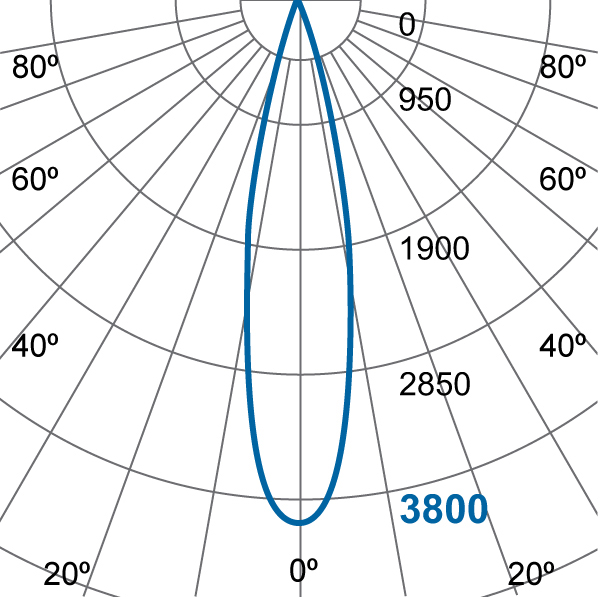

Max. Luminous Intensity (cd) 3800[24°] / 1600[45°]
Total Luminous Flux (lm) 750
Luminous Flux in 90° cone (lm) 730
Luminous Efficacy (lm/W) 75
Rated Life (hrs) 40000 at 25°C
Product Dimensions
Diameter (mm) 111
Height (mm) 82

Technologies

  • U-DIM
    Compatible with the widest range of existing dimmers, whether they are leading-edge or trailing edge dimmers, with enhanced dimming range of 100% down to 5%.
  • Dim-to-Warm
    Following exactly the dimming curve of familiar incandescent and halogen lamps, the LED lamps could simultaneously emit a warmer light when they are dimmed from 100% to 5%.
  • Dual Beam Technology
    The innovative Dual Beam Technology empowers commercial users to have two beam angles in one single lamp/luminaire. It offers high flexibility of changing the beam angles onsite for different application requirements.
