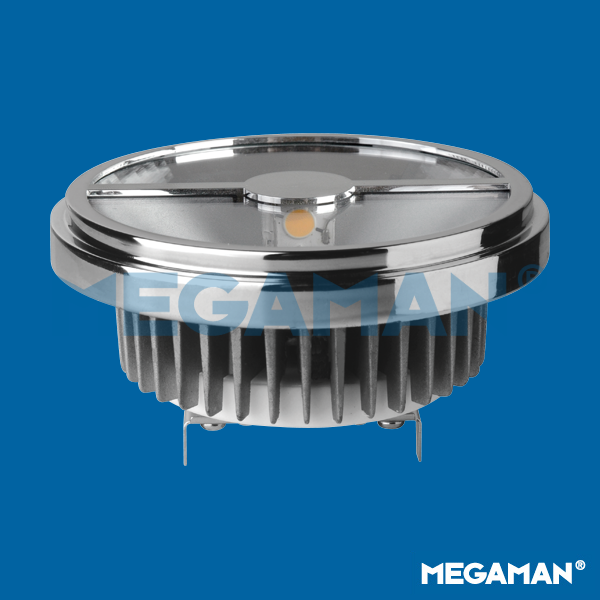

AR111 15W G53 8D 4000K DIMMABLE

Professional Series

MEGAMAN LED

Conventional Lamp

Spectral Power Distribution

Family Datasheet

Product Datasheet

Product Code:

Electrical Data
Voltage (V)	AC 12V
Frequency (Hz)	50/60
Current (mA)	1700
Power Factor (λ)	> 0.5
Starting Time (sec)	< 0.5 s
Warm-up Time Up to 100% of the Full Light Output (sec)	Instant full light
Product Data
Lamp Base	G53
Product Wattage (W)	15
Equivalent Wattage (W)	>100
Reflector	AR111
Beam Angle (°)	8
Colour Temperature (K)	Coolwhite (4000K)
Colour Render Index (Ra)	Ra80
Colour Consistency (SDCM)	SDCM <6
Dimmable	100-10%
Energy Label	A
Operating Temperature	-30°C to +40°C
Switching Cycles (times)	>1000000
Mercury Content (mg)	N/A
Weight (g)	275
Application	Retails, Hospitality
Performance Data
Max. Luminous Intensity (cd)	17000
Total Luminous Flux (lm)	850
Luminous Flux in 90° cone (lm)	650
Rated Life (hrs)	25000
Lumen Maintenance at the End of Lamp Life (%)	≥90
Product Dimensions
Diameter (mm)	111
Length (mm)	62
Remarks Works with most conventional 12V halogen transformers. Capable of linear dimming from 100% to 10% when working with most conventional dimmers for incandescent lamps or halogens. The rated life is declared based on an enclosed environment (the most severe situation). Extended life up to 40,000 hours is still possible when the lamp is used in more open fixtures.

Being able to adjust your LEDs with wide selection of dimming range from 100% to 10% or 20% for perfect atmosphere and/or scene setting – warm and bright, dim and cozy.
Using patented Thermal Conductive Highway™ technology and a unique design of ‘heat drain’ across the reflector to dissipate heat efficiently from the dual axial LED to prevent deterioration of the chips and other components.

Indoor
