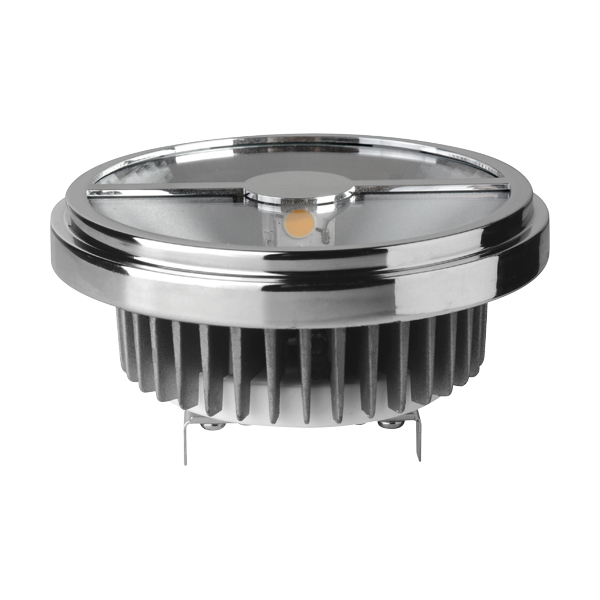

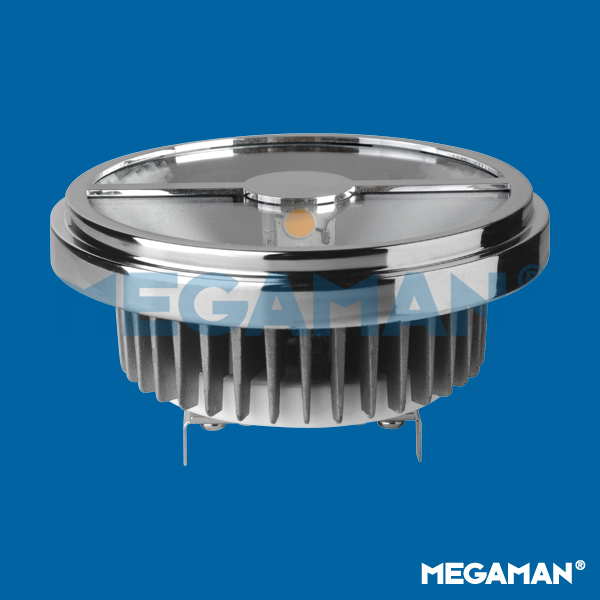

Please open the web page in browser.AR111 15W G53 8D 4000K
Professional Series
Recommended Transformers
Family Datasheet
Product Datasheet
ER2115-75H08D-G53-4000K-12V
| Electrical Data | |
| Voltage (V) | AC 12V |
| Frequency (Hz) | 50/60 |
| Product Data | |
| Lamp Base | G53 |
| Product Wattage (W) | 15 |
| Equivalent Wattage (W) | 75 |
| Reflector | AR111 |
| Beam Angle (°) | 8 |
| Colour Temperature (K) | Coolwhite (4000K) |
| Colour Render Index (Ra) | Ra85 |
| Dimmable | No |
| Operating Temperature | -30°C to +40°C |
| Weight (g) | 265 |
| Application | Retails, Hospitality |
| Performance Data | |
| Max. Luminous Intensity (cd) | 20000 |
| Total Luminous Flux (lm) | 950 |
| Rated Life (hrs) | 40000 |
| Product Dimensions | |
| Diameter (mm) | 111 |
| Length (mm) | 62 |
|
Remarks Works with most conventional 12V halogen transformers. |
|
Technologies
-
Using patented Thermal Conductive Highway™ technology and a unique design of ‘heat drain’ across the reflector to dissipate heat efficiently from the dual axial LED to prevent deterioration of the chips and other components.
