Please open the web page in browser.AR111
-
Discontinued
-
IES File
Spectral Power Distribution
Family Datasheet
Product Datasheet
ER205130/dm/db-HRv00-2B+024D045D+G53+840+AC012
| Electrical Data | |
| Voltage (V) | AC 12V |
| Current (mA) | 1300 |
| Power Factor (λ) | > 0.9 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 60% of the Full Light Output (sec) | Instant |
| Warm-up Time Up to 100% of the Full Light Output (sec) | Instant full light |
| Product Data | |
| Lamp Base | G53 |
| Product Wattage (W) | 13 |
| Equivalent Wattage (W) | 96 |
| Reflector | AR111 |

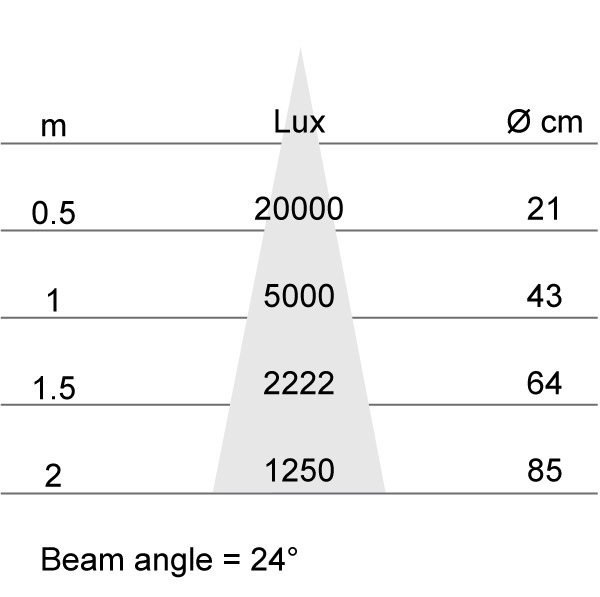

| Beam Angle (°) | [DBT] 24 / 45 |
| Colour Temperature (K) | Coolwhite (4000K) |
| Colour Render Index (Ra) | ≥ Ra80 |
| Colour Consistency (SDCM) | SDCM ≤4 |
| Dimmable | 100-10% |
| Operating Temperature | -30°C to +40°C |
| Switching Cycles (times) | >1000000 |
| Weight (g) | 230 |
| Application | Exhibition Rooms, Hotels, Meeting Rooms, Museums, Restaurants, Shops |
| Performance Data | |

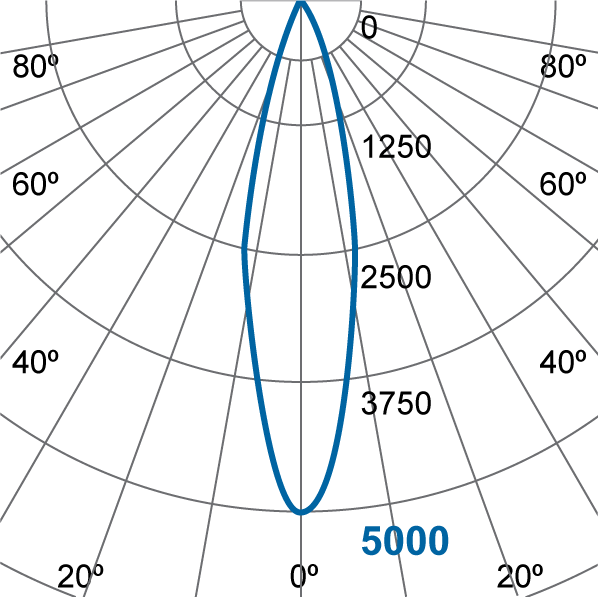

| Max. Luminous Intensity (cd) | 5000 [24°] / 2000 [45°] |
| Total Luminous Flux (lm) | 900 |
| Luminous Flux in 90° cone (lm) | 820[24°] / 850[45°] |
| Luminous Efficacy (lm/W) | 69 |
| Rated Life (hrs) | 40000 at 25°C |
| Lumen Maintenance at the End of Lamp Life (%) | ≥85 |
| Product Dimensions | |
| Diameter (mm) | 111 |
| Height (mm) | 58 |
|
Remarks The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging. |
|
Technologies
-
Being able to adjust your LEDs with wide selection of dimming range from 100% to 10% or 20% for perfect atmosphere and/or scene setting – warm and bright, dim and cozy.
-
The innovative Dual Beam Technology empowers commercial users to have two beam angles in one single lamp/luminaire. It offers high flexibility of changing the beam angles onsite for different application requirements.
