100W/11.5W G53 900/950lm 2700K Ra80 DBT Dimmable

AR111

Spectral Power Distribution

Family Datasheet

Product Datasheet

Product Code:

Electrical Data
Voltage (V)	AC 12V
Frequency (Hz)	50/60 Hz
Current (mA)	1100
Power Factor (λ)	≥ 0.80
Starting Time (sec)	< 0.5 s
Warm-up Time Up to 60% of the Full Light Output (sec)	Instant
Product Data
Lamp Base	G53
Product Wattage (W)	11.5
Equivalent Wattage (W)	100

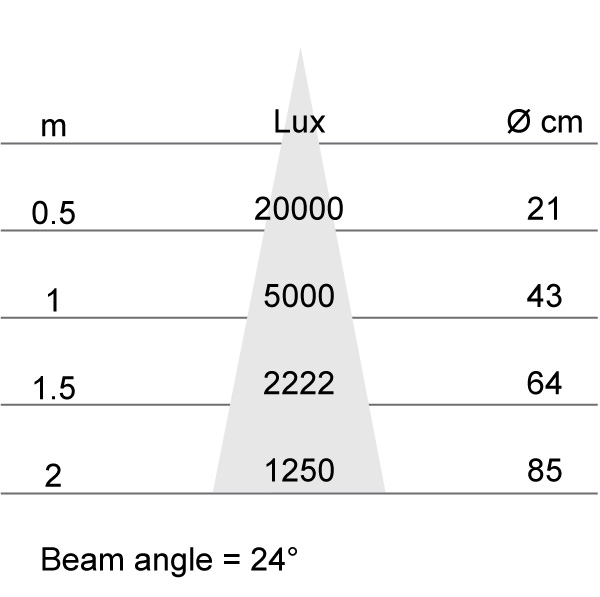

Beam Angle (°)	[DBT] 24 / 45
Colour Temperature (K)	2700
Colour Render Index (Ra)	Ra80
Colour Consistency (SDCM)	4
Dimmable	100-10%
Operating Temperature	-30°C to +40°C
Switching Cycles (times)	> 100000
Weight (g)	230
Application	Art Galleries, Exhibition Halls, Hospitality Installations, Restaurants, Retail Displays
Performance Data

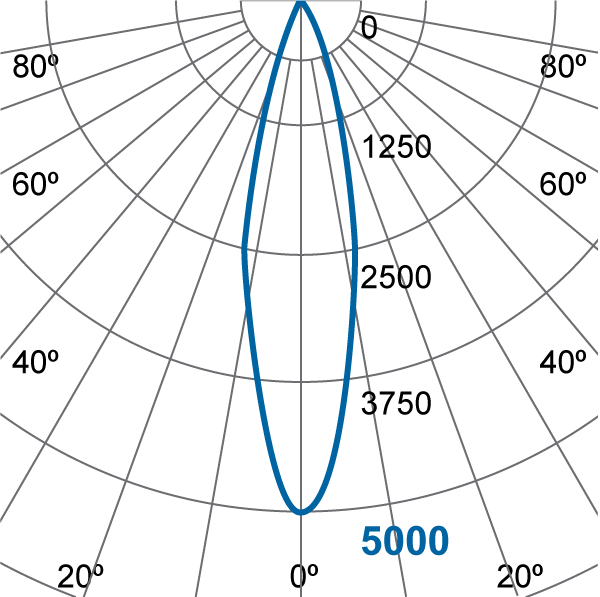

Max. Luminous Intensity (cd)	5000 [24°] / 2000 [45°]
Total Luminous Flux (lm)	1000 [24°] / 1050 [45°]
Luminous Flux in 90° cone (lm)	900 [24°] / 950 [45°]
Lumens per Watt (lm/W)	87 [24°] / 91 [45°]
Luminous Efficacy (lm/W)	87 [24°] / 91 [45°]
Rated Life (hrs)	40000
Product Dimensions
Diameter (mm)	111
Width (mm)	111
Height (mm)	58

Being able to adjust your LEDs with wide selection of dimming range from 100% to 10% or 20% for perfect atmosphere and/or scene setting – warm and bright, dim and cozy.
The innovative Dual Beam Technology empowers commercial users to have two beam angles in one single lamp/luminaire. It offers high flexibility of changing the beam angles onsite for different application requirements.

Indoor
