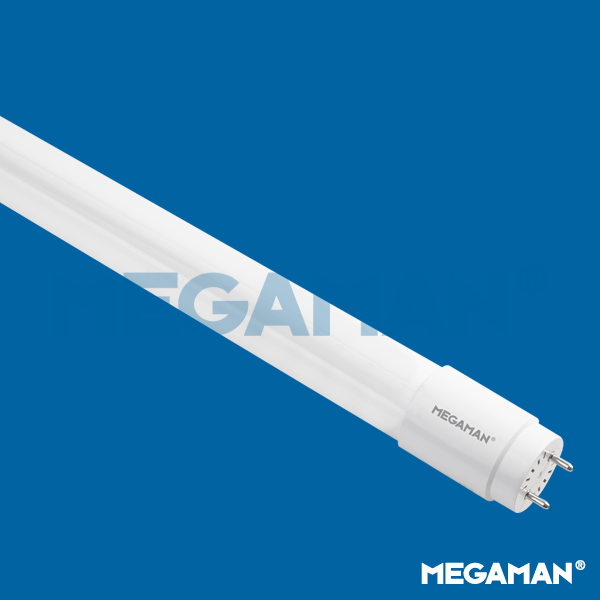

18W G13 1800lm 4000K Ra80 1200mm

T8 - Magnetic/AC Mains

F





Spectral Power Distribution
Spectral Power Distribution
     Family Datasheet
     Product Datasheet
Product Code:

LT205180/mb-12v02+G13+840+V0240

Electrical Data
Voltage (V) 220-240V
Frequency (Hz) 50/60 Hz
Current (mA) 157
Power Factor (λ) ≥ 0.50
Starting Time (sec) < 0.5 s
Warm-up Time Up to 60% of the Full Light Output (sec) Instant
Total Harmonic Distortion 150%
Product Data
Lamp Base G13
Product Wattage (W) 18
Colour Temperature (K) 4000
Colour Render Index (Ra) Ra80
Colour Consistency (SDCM) 6
Dimmable No
Operating Temperature -30°C to +45°C
Maximum Casing Temperature (Tc) 75
Switching Cycles (times) > 100000
Weight (g) 210
Application Billboards, Car parks, Industrial Areas, Offices, Staircases
Performance Data
Total Luminous Flux (lm) 1800
Luminous Efficacy (lm/W) 100
Rated Life (hrs) 15000
Product Dimensions
Diameter (mm) 28
Width (mm) 28
Height (mm) 1212
