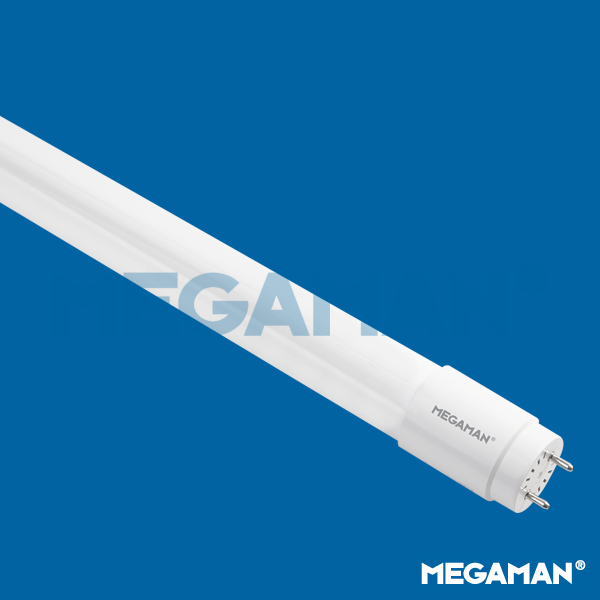

10.5W G13 1600lm 6500K Ra80 900mm

T8 - Magnetic/AC Mains

Spectral Power Distribution

Family Datasheet

Product Datasheet

Product Code:

Electrical Data
Voltage (V)	220-240V
Frequency (Hz)	50/60 Hz
Current (mA)	50
Power Factor (λ)	≥ 0.90
Starting Time (sec)	< 0.5 s
Warm-up Time Up to 60% of the Full Light Output (sec)	Instant
Total Harmonic Distortion	30%
Product Data
Lamp Base	G13
Product Wattage (W)	10.5
Colour Temperature (K)	6500
Colour Render Index (Ra)	Ra80
Colour Consistency (SDCM)	6
Dimmable	No
Operating Temperature	-30°C to +45°C
Maximum Casing Temperature (Tc)	75
Switching Cycles (times)	> 100000
Weight (g)	162
Application	Billboards, Car parks, Industrial Areas, Industrial Buildings, Offices, Staircases, Underground Areas
Performance Data
Total Luminous Flux (lm)	1600
Luminous Efficacy (lm/W)	152
Rated Life (hrs)	50000
Product Dimensions
Diameter (mm)	28
Width (mm)	28
Height (mm)	908

Indoor
