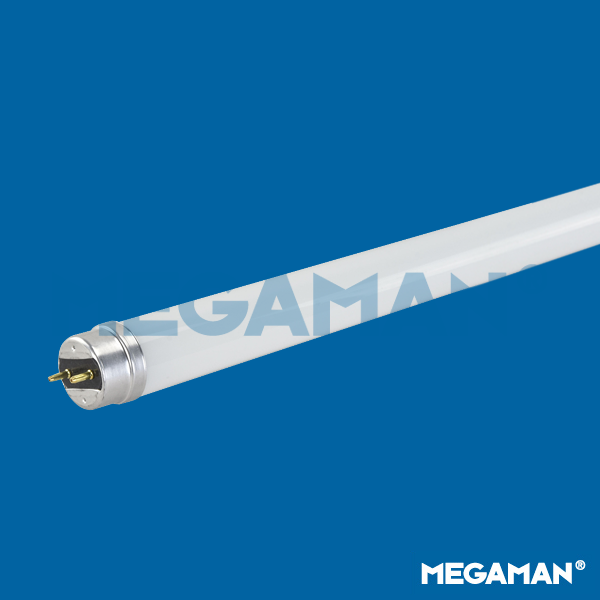

Please open the web page in browser.9W G13 1000lm 3000K Ra80 600mm
T8 - Magnetic/AC Mains
IES File
Technical Document (PDF)
Family Datasheet
Product Datasheet
LT205090/mb-06v03+G13+830+V0240
| Electrical Data | |
| Voltage (V) | 220-240V |
| Frequency (Hz) | 50/60 Hz |
| Current (mA) | 78 |
| Power Factor (λ) | ≥ 0.50 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 60% of the Full Light Output (sec) | Instant |
| Total Harmonic Distortion | 1.3 |
| Product Data | |
| Lamp Base | G13 |
| Product Wattage (W) | 9 |
| Equivalent Wattage (W) | N/A |
| Colour Temperature (K) | 3000 |
| Colour Render Index (Ra) | Ra80 |
| Colour Consistency (SDCM) | 6 |
| Dimmable | No |
| Operating Temperature | -30°C to +45°C |
| Maximum Casing Temperature (Tc) | 75 |
| Switching Cycles (times) | > 100000 |
| Weight (g) | 93 |
| Application | Billboards, Car parks, Industrial Areas, Industrial Buildings, Offices, Staircases, Underground Areas |
| Performance Data | |
| Total Luminous Flux (lm) | 1000 |
| Luminous Efficacy (lm/W) | 111 |
| Rated Life (hrs) | 30000 |
| Product Dimensions | |
| Diameter (mm) | 28 |
| Width (mm) | 28 |
| Height (mm) | 603 |
