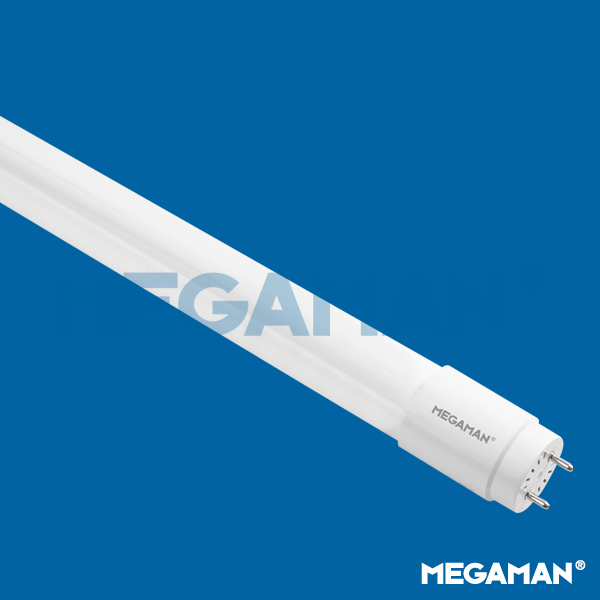

Please open the web page in browser.6.5W G13 900lm 3000K Ra80 600mm
T8 - Magnetic/AC Mains
IES File
Family Datasheet
Product Datasheet
LT205065/mb-06v01+G13+830+V0240
| Electrical Data | |
| Voltage (V) | 220-240V |
| Frequency (Hz) | 50/60 Hz |
| Current (mA) | 31 |
| Power Factor (λ) | ≥ 0.90 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 60% of the Full Light Output (sec) | Instant |
| Total Harmonic Distortion | 30% |
| Product Data | |
| Lamp Base | G13 |
| Product Wattage (W) | 6.5 |
| Colour Temperature (K) | 3000 |
| Colour Render Index (Ra) | Ra80 |
| Colour Consistency (SDCM) | 6 |
| Dimmable | No |
| Operating Temperature | -30°C to +45°C |
| Maximum Casing Temperature (Tc) | 75 |
| Switching Cycles (times) | > 100000 |
| Weight (g) | 150 |
| Application | Billboards, Car parks, Industrial Areas, Industrial Buildings, Offices, Staircases, Underground Areas |
| Performance Data | |
| Total Luminous Flux (lm) | 900 |
| Luminous Efficacy (lm/W) | 138 |
| Rated Life (hrs) | 50000 |
| Product Dimensions | |
| Diameter (mm) | 28 |
| Width (mm) | 28 |
| Height (mm) | 603 |
