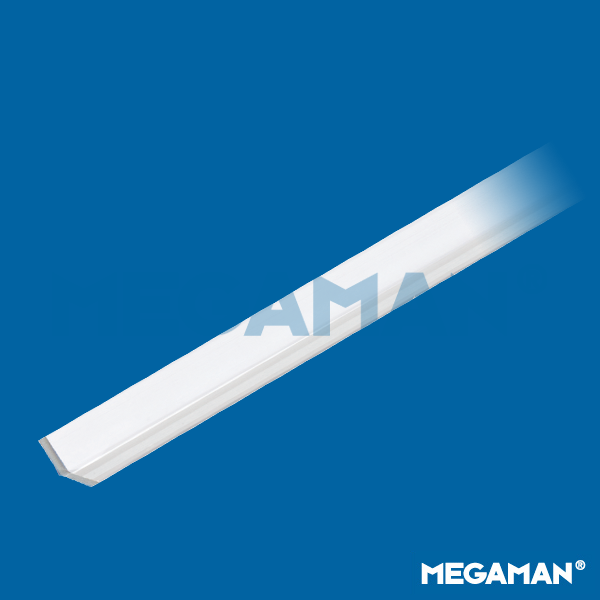

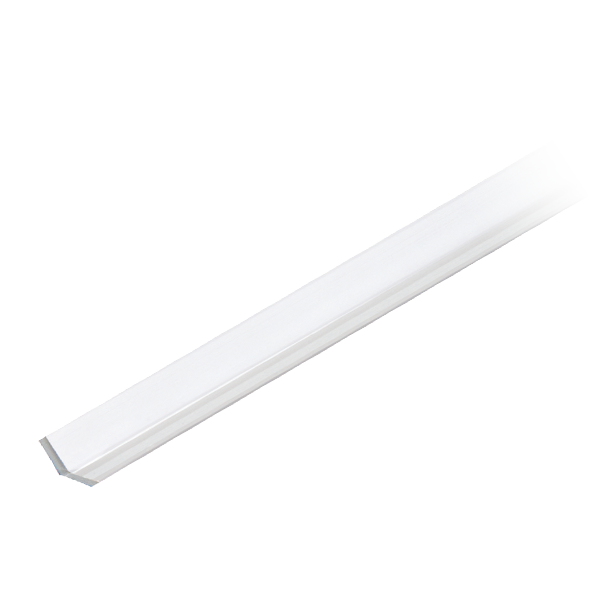

Strip 4W 3000K

Smart Series

     Specification Sheet
Product Code:

ST0103-3000K

Electrical Data
Voltage (V) DC 24V
Frequency (Hz) N/A
Constant Current (mA) 167
Power Factor (λ) 1
Starting Time (sec) <0.5
Warm-up Time Up to 100% of the Full Light Output (sec) Instant full light
Product Data
Lamp Base N/A
Product Wattage (W) 4
Colour Temperature (K) Warmwhite (3000K)
Colour Render Index (Ra) Ra85
Dimmable Yes
Energy Label A++
Operating Temperature -30°C to +40°C
Switching Cycles (times) >1000000
Mercury Content (mg) N/A
Weight (g) 51
Application Retail, Hospitality, Residential
Performance Data
Total Luminous Flux (lm) 200
Rated Life (hrs) 30000
Lumen Maintenance at the End of Lamp Life (%) ≥90
IP Rating IP20
Product Dimensions
Length (mm) 310
Width (mm) 8
Height (mm) 13
Remarks
The lamp is not suitable for accent lighting. Water resistant outdoor version, the lamp is designed to maintain the IP rating of the light fitting used (up to maximum of IP65). Capable of dimming when working with a pulse width modulation (PWM) dimmer. Dimming performance depends on the specification and quality of PWM dimmer. The rated wattage, rated lamp life and rated luminous flux are equivalent to their nominal values shown on product packaging.
