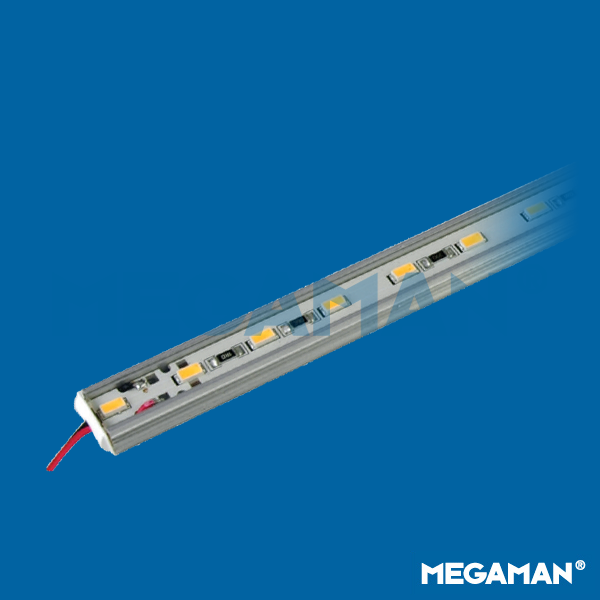

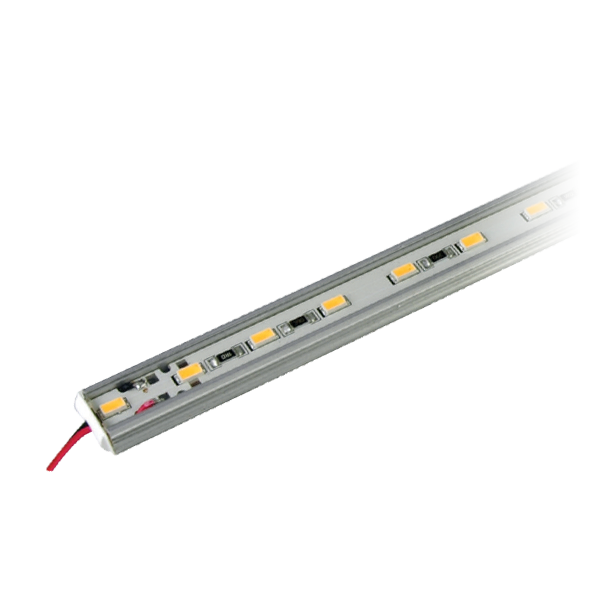

Strip 5W 3000K

Smart Series


Spectral Power Distribution
Spectral Power Distribution
     Specification Sheet
Product Code:


Electrical Data
Voltage (V) DC 24V
Frequency (Hz) N/A
Constant Current (mA) 208
Power Factor (λ) >0.4
Starting Time (sec) <0.5
Warm-up Time Up to 100% of the Full Light Output (sec) Instant full light
Product Data
Lamp Base N/A
Product Wattage (W) 5
Colour Temperature (K) Warmwhite (3000K)
Colour Render Index (Ra) Ra80
Colour Consistency (SDCM) <6
Dimmable Yes
Energy Label A+
Operating Temperature -30°C to +40°C
Switching Cycles (times) >1000000
Mercury Content (mg) N/A
Weight (g) 61
Application Retail, Hospitality, Residential
Performance Data
Total Luminous Flux (lm) 400
Rated Life (hrs) 25000
Lumen Maintenance at the End of Lamp Life (%) ≥90
IP Rating IP65
Product Dimensions
Length (mm) 305
Width (mm) 15
Height (mm) 7
The lamp is not suitable for accent lighting.
Water resistant outdoor version, the lamp is designed to maintain the IP rating of the light fitting used (up to maximum of IP65).
Capable of dimming when working with a pulse width modulation (PWM) dimmer. Dimming performance depends on the specification and quality of PWM dimmer.
The rated wattage, rated lamp life and rated luminous flux are equivalent to their nominal values shown on product packaging.
