Discontinued
Spectral Power Distribution
Family Datasheet
Product Datasheet

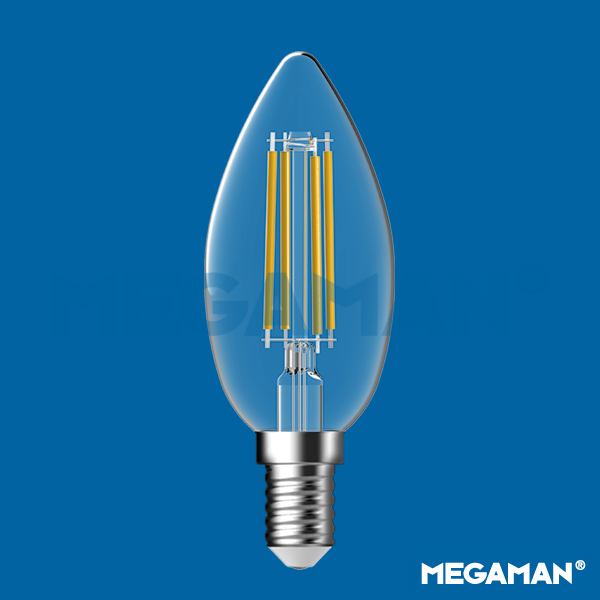

LC208053/dm/R9-CSv00+E14+927+V0240
| Electrical Data | |
| Voltage (V) | 220-240V |
| Frequency (Hz) | 50 Hz |
| Current (mA) | 31 |
| Power Factor (λ) | > 0.8 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 60% of the Full Light Output (sec) | Instant |
| Warm-up Time Up to 100% of the Full Light Output (sec) | Instant full light |
| Product Data | |
| Lamp Base | E14 |
| Product Wattage (W) | 5.3 |
| Equivalent Wattage (W) | 40 |
| Colour Temperature (K) | Warmwhite (2700K) |
| Colour Render Index (Ra) | ≥ Ra90 |
| Colour Consistency (SDCM) | SDCM ≤6 |
| Dimmable | 100-10% |
| Energy Label | A+ |
| Operating Temperature | -30°C to +45°C |
| Switching Cycles (times) | >1000000 |
| Weight (g) | 15 |
| Application | Decorative Installations, Domestic Applications, Hotels, Restaurants, Shops |
| Performance Data | |
| Total Luminous Flux (lm) | 470 |
| Luminous Efficacy (lm/W) | 89 |
| Rated Life (hrs) | 15000 |
| Lumen Maintenance at the End of Lamp Life (%) | ≥70 |
| Product Dimensions | |
| Diameter (mm) | 35 |
| Height (mm) | 97 |
|
Remarks The rated wattage, rated lamp life and rated luminous flux are equivalent to their nominal values shown on product packaging. |
|
Technologies
-
Being able to adjust your LEDs with wide selection of dimming range from 100% to 10% or 20% for perfect atmosphere and/or scene setting – warm and bright, dim and cozy.
