Fire Rated Downlight

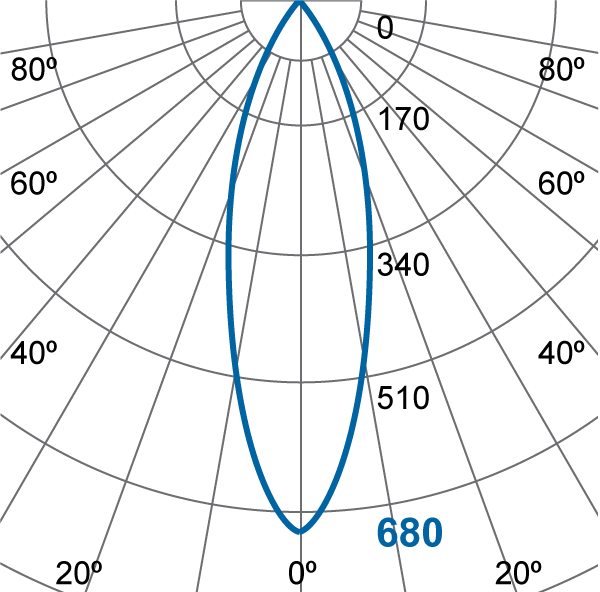

Photometric Diagram

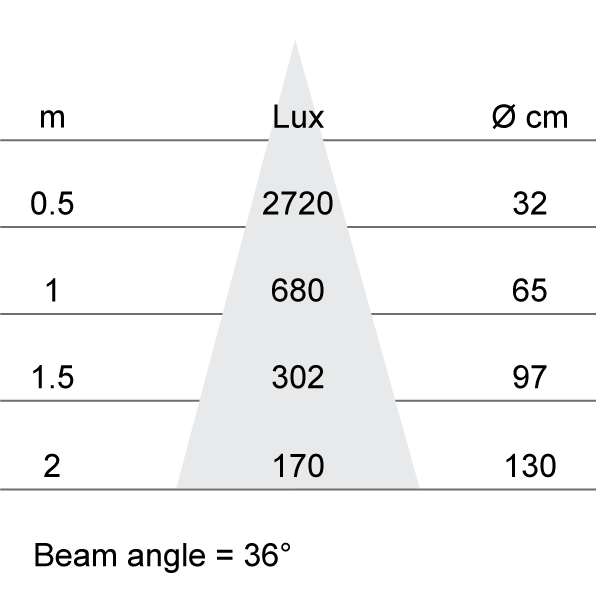

Lux-cone Diagram
Spectral Power Distribution
Spectral Power Distribution
     Family Datasheet
     Product Datasheet
Product Code:


Electrical Data
Voltage (V) 220-240V
Frequency (Hz) 50/60 Hz
Current (mA) 30
Power Factor (λ) ≥ 0.90
Starting Time (sec) < 0.5 s
Warm-up Time Up to 60% of the Full Light Output (sec) Instant
Product Data
Lamp Base GU10
Product Wattage (W) 5
Equivalent Wattage (W) 50
Colour Temperature (K) Dim to Warm (3000-1800)
Colour Render Index (Ra) Ra90
Colour Consistency (SDCM) 6
Dimmable 100-5%
Operating Temperature -30°C to +45°C
Switching Cycles (times) > 100000
Weight (g) 33
Application Art Galleries, Hotels, Residential Interiors, Restaurants, Showcase Displays
Performance Data
Max. Luminous Intensity (cd) 680
Total Luminous Flux (lm) 410
Luminous Flux in 90° cone (lm) 345
Luminous Efficacy (lm/W) 82
Rated Life (hrs) 25000
Product Dimensions
Diameter (mm) 50
Width (mm) 50
Height (mm) 55


  • Fire Rated Downlight
    Work well under fire rated downlights at 45°C.
  • U-DIM
    Compatible with the widest range of existing dimmers, whether they are leading-edge or trailing edge dimmers, with enhanced dimming range of 100% down to 5%.
  • Dim-to-Warm
    Following exactly the dimming curve of familiar incandescent and halogen lamps, the LED lamps could simultaneously emit a warmer light when they are dimmed from 100% to 5%.
