Please open the web page in browser.PAR16
-
Discontinued
Spectral Power Distribution
Family Datasheet
Product Datasheet
LR050060/dw/ru-DGv00-FL+035D+GU10+930918+V0240
| Electrical Data | |
| Voltage (V) | 220-240V |
| Frequency (Hz) | 50/60 Hz |
| Current (mA) | 31 |
| Power Factor (λ) | > 0.85 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 60% of the Full Light Output (sec) | Instant |
| Product Data | |
| Lamp Base | GU10 |
| Product Wattage (W) | 6 |
| Equivalent Wattage (W) | 45 |
| Beam Angle (°) | 35 |
| Colour Temperature (K) | 3000-1800 |
| Colour Render Index (Ra) | Ra97 |
| Colour Consistency (SDCM) | SDCM ≤6 |
| Dimmable | 100-5% |
| Operating Temperature | -30°C to +40°C |
| Switching Cycles (times) | >100000 |
| Weight (g) | 76 |
| Application | Art Galleries, Hotel Lobbies, Meeting Rooms, Residential Interiors, Restaurants, Shops |
| Performance Data | |
| Max. Luminous Intensity (cd) | 480 |
| Luminous Flux in 90° cone (lm) | 280 |
| Luminous Efficacy (lm/W) | 67 |
| Rated Life (hrs) | 25000 at 25°C |
| Rated Life (hrs) | 25000 at 45°C |

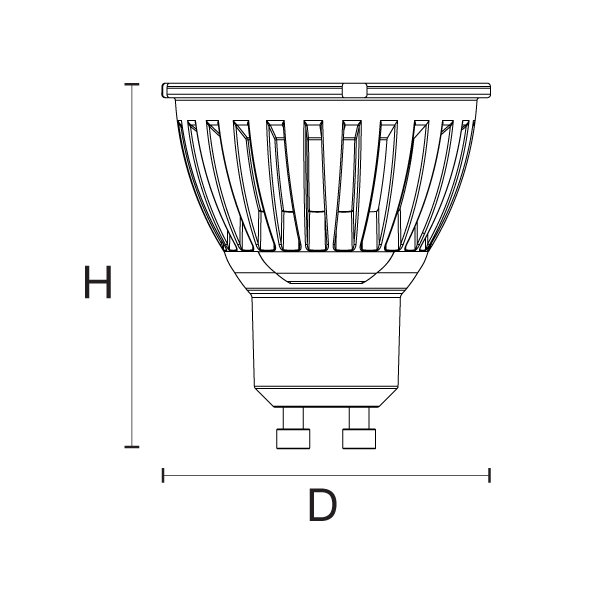

| Product Dimensions | |
| Diameter (mm) | 50 |
| Height (mm) | 57 |
Technologies
-
Compatible with the widest range of existing dimmers, whether they are leading-edge or trailing edge dimmers, with enhanced dimming range of 100% down to 5%.
-
Following exactly the dimming curve of familiar incandescent and halogen lamps, the LED lamps could simultaneously emit a warmer light when they are dimmed from 100% to 5%.
