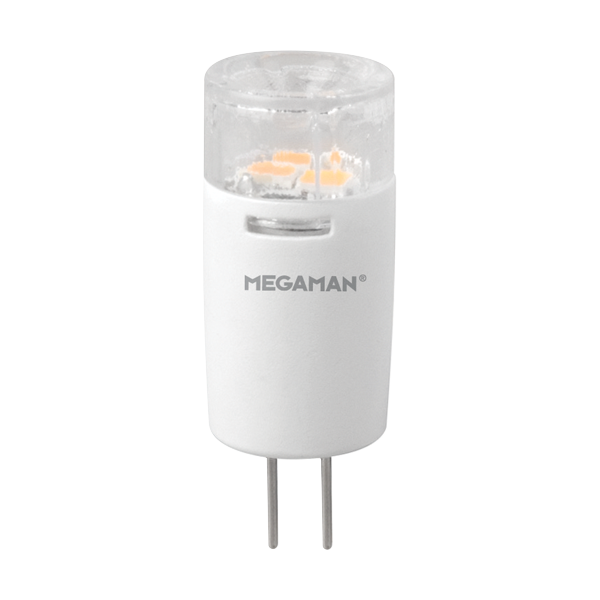

G4 1.3W G4 2800K

Economy Series

  • Discontinued
A++




Spectral Power Distribution
Spectral Power Distribution
     Family Datasheet
     Product Datasheet
Product Code:

EU0201.3-G4-2800K-12V

Electrical Data
Voltage (V) AC 12V
Frequency (Hz) N/A
Power Factor (λ) > 0.6
Starting Time (sec) < 0.5 s
Warm-up Time Up to 100% of the Full Light Output (sec) Instant full light
Product Data
Lamp Base G4
Product Wattage (W) 1.3
Equivalent Wattage (W) 10
Colour Temperature (K) Warmwhite (2800K)
Colour Render Index (Ra) Ra80
Colour Consistency (SDCM) SDCM ≤6
Dimmable No
Energy Label A++
Operating Temperature -30°C to +40°C
Switching Cycles (times) >1000000
Mercury Content (mg) N/A
Weight (g) 3
Application Hospitality, Residential
Performance Data
Total Luminous Flux (lm) 95
Rated Life (hrs) 15000
Lumen Maintenance at the End of Lamp Life (%) ≥70
Product Dimensions
Diameter (mm) 13
Length (mm) 32
Remarks
The rated wattage, rated lamp life and rated luminous flux are equivalent to their nominal values shown on product packaging.
