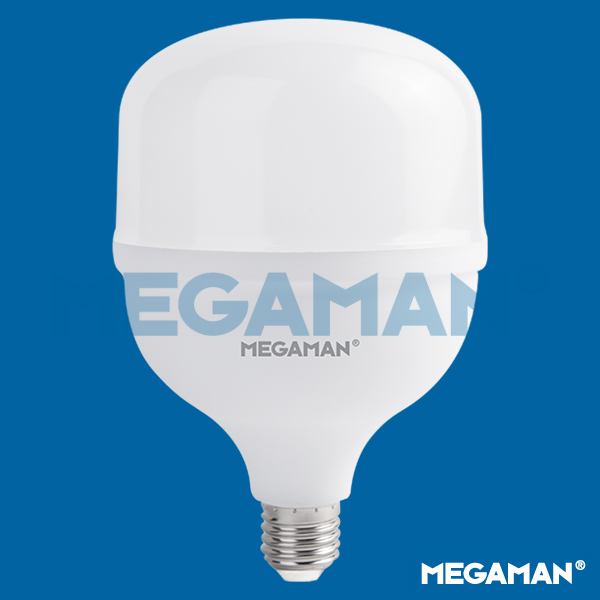

LG277340-OPv00+E27+830+V0240
| Electrical Data | |
| Voltage (V) | 220-240V |
| Frequency (Hz) | 50/60 Hz |
| Current (mA) | 156 |
| Power Factor (λ) | ≥ 0.95 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 60% of the Full Light Output (sec) | Instant |
| Total Harmonic Distortion | .1 |
| Product Data | |
| Lamp Base | E27 |
| Product Wattage (W) | 34 |
| Equivalent Wattage (W) | 200 |
| Colour Temperature (K) | 3000 |
| Colour Render Index (Ra) | Ra80 |
| Colour Consistency (SDCM) | 6 |
| Dimmable | No |
| Operating Temperature | -30°C to +45°C |
| Maximum Casing Temperature (Tc) | 100℃ |
| Switching Cycles (times) | > 100000 |
| Weight (g) | 170 |
| Application | Commercial Areas, Market stalls, Public area, Retail shops, Workshops |
| Performance Data | |
| Luminous Efficacy (lm/W) | 112 |
| Rated Life (hrs) | 15000 |
| Product Dimensions | |
| Diameter (mm) | 118 |
| Width (mm) | 118 |
| Height (mm) | 178 |
