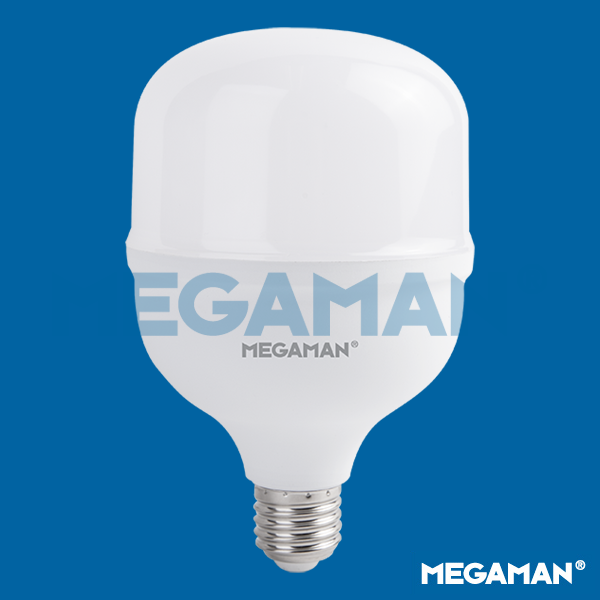

T100, T120


Spectral Power Distribution
Spectral Power Distribution
     Family Datasheet
     Product Datasheet
Product Code:


Electrical Data
Voltage (V) 220-240V
Frequency (Hz) 50/60 Hz
Current (mA) 208
Power Factor (λ) ≥ 0.50
Starting Time (sec) < 0.5 s
Warm-up Time Up to 60% of the Full Light Output (sec) Instant
Total Harmonic Distortion 1.5
Product Data
Lamp Base E27
Product Wattage (W) 24
Equivalent Wattage (W) 170
Colour Temperature (K) 3000
Colour Render Index (Ra) Ra80
Colour Consistency (SDCM) 6
Dimmable No
Operating Temperature -30°C to +45°C
Maximum Casing Temperature (Tc) 100℃
Switching Cycles (times) > 100000
Weight (g) 123
Application Commercial Areas, Market stalls, Public area, Retail shops, Workshops
Performance Data
Luminous Efficacy (lm/W) 119
Rated Life (hrs) 15000
Product Dimensions
Diameter (mm) 100
Width (mm) 100
Height (mm) 157
