Discontinued
Spectral Power Distribution
Family Datasheet
Product Datasheet

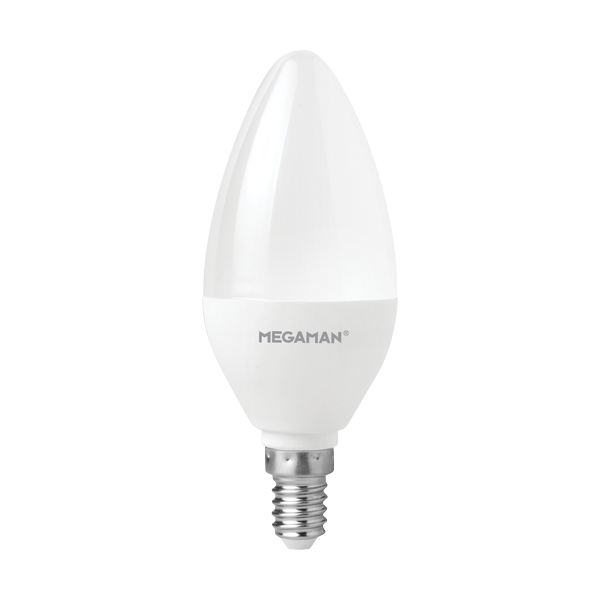

LC1105.5w-E14-2700K-230V
| Electrical Data | |
| Voltage (V) | 220-240V |
| Power Factor (λ) | > 0.8 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 100% of the Full Light Output (sec) | Instant full light |
| Product Data | |
| Lamp Base | E14 |
| Product Wattage (W) | 5.5 |
| Equivalent Wattage (W) | 40 |
| Colour Temperature (K) | Dim to Warm (2700-1800) |
| Colour Render Index (Ra) | Ra80 |
| Colour Consistency (SDCM) | SDCM ≤6 |
| Dimmable | 100-5% |
| Operating Temperature | -30°C to +40°C |
| Weight (g) | 50 |
| Application | Commercial Areas, Domestic Applications, Hotels, Shops, Social Areas |
| Performance Data | |
| Total Luminous Flux (lm) | 470 |
| Rated Life (hrs) | 25000 |
| Product Dimensions | |
| Diameter (mm) | 40 |
| Length (mm) | 106 |
|
Remarks Colour Temperature changes from 2700K to 1800K when dimmed from 100% to 10%. The rated wattage, rated lamp life and rated luminous flux are equivalent to their nominal values shown on product packaging. |
|
Technologies
-
Compatible with the widest range of existing dimmers, whether they are leading-edge or trailing edge dimmers, with enhanced dimming range of 100% down to 5%.
-
Following exactly the dimming curve of familiar incandescent and halogen lamps, the LED lamps could simultaneously emit a warmer light when they are dimmed from 100% to 5%.
