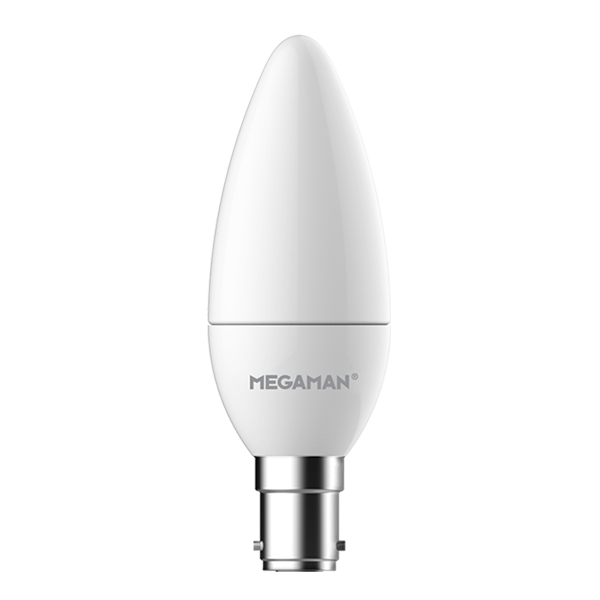

LC0405.5+B15d+840+V0240
| Electrical Data | |
| Voltage (V) | 220-240V |
| Frequency (Hz) | 50/60 Hz |
| Current (mA) | 50 |
| Power Factor (λ) | > 0.5 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 60% of the Full Light Output (sec) | Instant |
| Product Data | |
| Lamp Base | B15d |
| Product Wattage (W) | 5.5 |
| Equivalent Wattage (W) | 40 |
| Colour Temperature (K) | Coolwhite (4000K) |
| Colour Render Index (Ra) | ≥ Ra80 |
| Colour Consistency (SDCM) | SDCM ≤6 |
| Dimmable | No |
| Operating Temperature | -30°C to +45°C |
| Weight (g) | 24 |
| Application | Commercial Areas, Domestic Applications, Hotels, Shops, Social Areas |
| Performance Data | |
| Total Luminous Flux (lm) | 470 |
| Luminous Efficacy (lm/W) | 85 |
| Rated Life (hrs) | 15000 |
| Lumen Maintenance at the End of Lamp Life (%) | ≥70 |
| Product Dimensions | |
| Diameter (mm) | 35 |
| Height (mm) | 105 |
|
Remarks The rated wattage, rated lamp life and rated luminous flux are equivalent to their nominal values, which show on the product packaging. |
|
