FONDA Bulkhead (Integrated)

     Specification Sheet
Product Code:


Electrical Data
Voltage (V) 220-240V
Power Factor (λ) >0.9
Product Data
Product Wattage (W) 10.5
Colour Temperature (K) Warmwhite (3000K), Coolwhite (4000K)
Colour Render Index (Ra) >Ra80
Colour White (WH12), Silver (SV25), Black (BK12)
Materials Polycarbonate housing and polycarbonate diffuser materials
Protection Class Class II
Dimmable No
Weight (g) 728
Application Corridors, Patios
Performance Data
Luminous Flux (lm) 800
Luminous Efficacy (lm/W) 76
Rated Life (hrs) 25000
IP Rating IP66

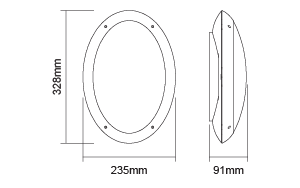

Product Dimensions
Length (mm) 328
Width (mm) 235
Height (mm) 91
SV25 is for MEGAMAN® FONDA with sensor
