VERSOFIT Recessed Downlight (THx)

Luminaire with LED Light Engine TECOH^® THx TH0106d

Specification Sheet

Product Code:

Product Data
Max. Wattage (W)	8
Light Source	TECOH® THx TH0106d
Beam Angle (°)	36
Colour	White (WH26), Chrome (CH52), Brushed Nickel (NI53)
Materials	Steel body
Protection Class	Class II
Dimmable	N/A
Weight (g)	264
Application	Corridors, Hotels, Kitchens, Offices, Restaurants
Performance Data
IP Rating	IP65

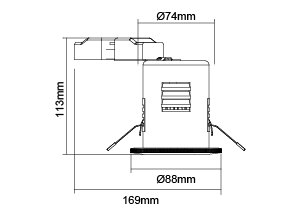

Product Dimensions
Diameter (mm)	88
Length (mm)	169
Height (mm)	113
Cut-out (mm)	Ø74

36°

TH0106d-36D
Voltage (V):  220-240V
Wattage (W):  8
Max. Luminous Intensity (cd):  650
Luminous Flux (lm):  600 - 630
