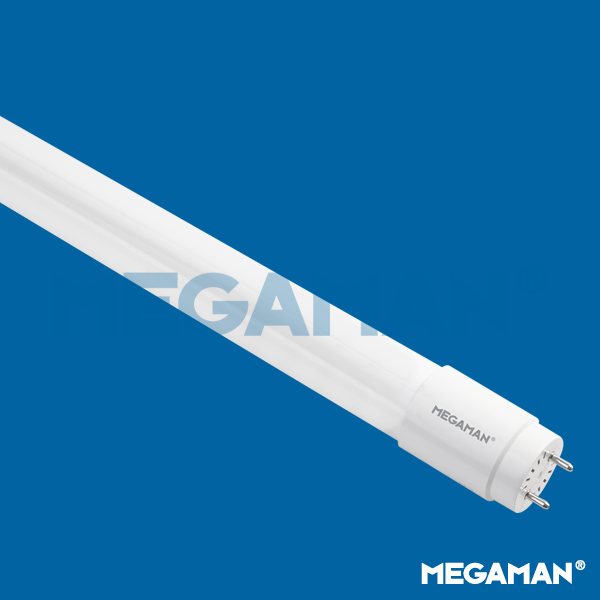

10.5W G13 1450lm 3000K Ra80 900mm

T8 - Magnetic/AC Mains

D





Spectral Power Distribution
Spectral Power Distribution
     Family Datasheet
     Product Datasheet
Product Code:

LT205105/mb-09v01+G13+830+V0240

Electrical Data
Voltage (V) 220-240V
Frequency (Hz) 50/60 Hz
Current (mA) 50
Power Factor (λ) ≥ 0.90
Starting Time (sec) < 0.5 s
Warm-up Time Up to 60% of the Full Light Output (sec) Instant
Total Harmonic Distortion 30%
Product Data
Lamp Base G13
Product Wattage (W) 10.5
Colour Temperature (K) 3000
Colour Render Index (Ra) Ra80
Colour Consistency (SDCM) 6
Dimmable No
Operating Temperature -30°C to +45°C
Maximum Casing Temperature (Tc) 75
Switching Cycles (times) > 100000
Weight (g) 162
Application Billboards, Car parks, Industrial Areas, Industrial Buildings, Offices, Staircases, Underground Areas
Performance Data
Total Luminous Flux (lm) 1450
Luminous Efficacy (lm/W) 138
Rated Life (hrs) 50000
Product Dimensions
Diameter (mm) 28
Width (mm) 28
Height (mm) 908
